S2375/16
S2375/16

S2375/16

UGC DOR7648838
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.64 CAD - $76.64 CAD
$76.64 CAD
$76.64 CAD - $76.64 CAD
$76.64 CAD

Vendu en lots de : 1

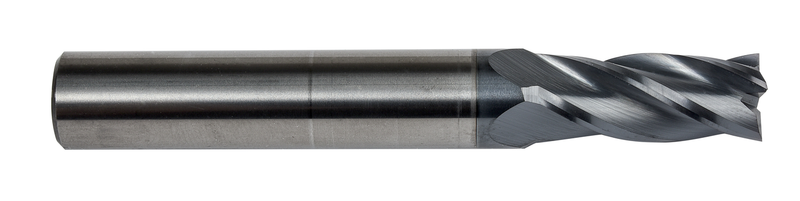

Fraise en bout série extra longue 4 dents, diamètre 5/16" avec longueur de coupe 1.5/8" et longueur totale 4", selon la norme DORMER avec une queue cylindrique 5/16", carbure monobloc avec revêtement TiAlN, hélice 30° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2375/16
GradeTiAlN
Product Number7648838
Product FamilyS237

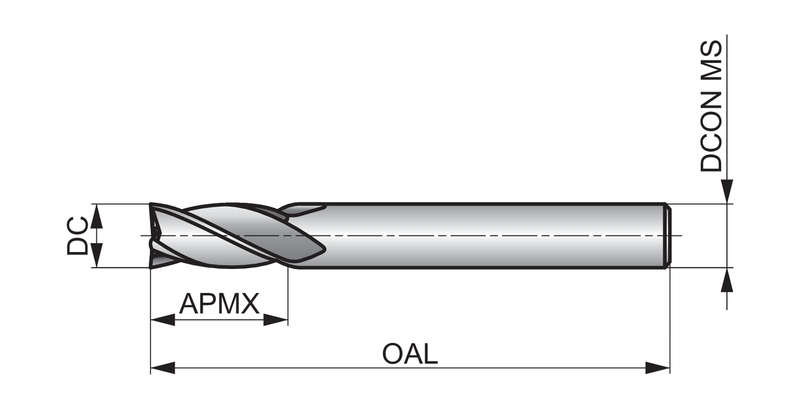

Insert Geometry
Depth of Cut Max — mm (APMX)41.28 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648838
EAN7320760848852
File Type Download
S2375/16 — Line Drawing PDF Download
