S2373/8
S2373/8

S2373/8

UGC DOR7648839
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.81 CAD - $79.81 CAD
$79.81 CAD
$79.81 CAD - $79.81 CAD
$79.81 CAD

Vendu en lots de : 1

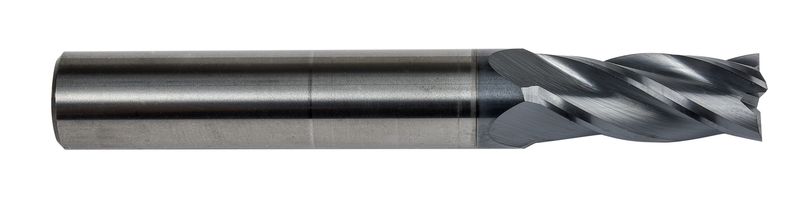

Fraise en bout extra-longue 4 dents, diamètre 3/8" avec une longueur de coupe de 1,3/4" et une longueur totale de 4", selon la norme DORMER, avec queue cylindrique de 3/8", en carbure monobloc avec revêtement TiAlN, hélice 30° pour le surfaçage-dressage et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2373/8
GradeTiAlN
Product Number7648839
Product FamilyS237
Insert Geometry
Depth of Cut Max — mm (APMX)44.45 mm

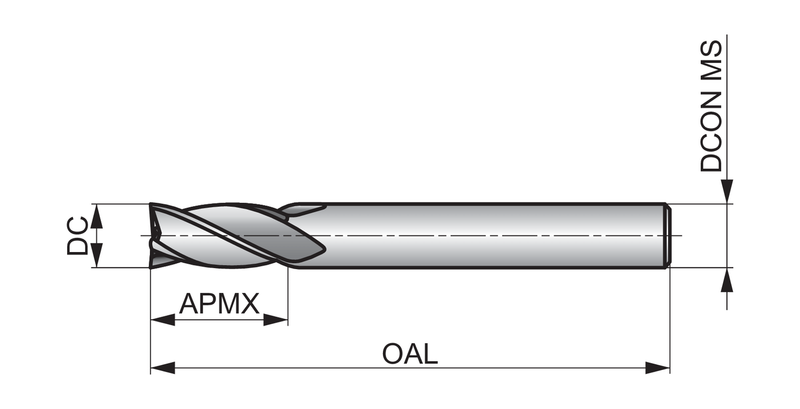

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648839
EAN7320760848869
File Type Download
S2373/8 — Line Drawing PDF Download
