S2371
S2371

S2371

UGC DOR7648844
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$582.49 CAD - $582.49 CAD
$582.49 CAD
$582.49 CAD - $582.49 CAD
$582.49 CAD

Vendu en lots de : 1

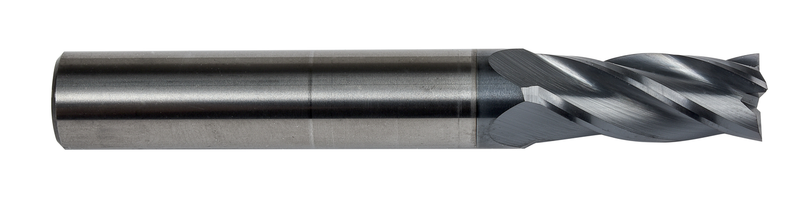

Fraise en bout série extra-longue à 4 dents, diamètre 1" avec une longueur de coupe de 3" et une longueur totale de 6", selon la norme DORMER avec une queue cylindrique de 1", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2371
GradeTiAlN
Product Number7648844
Product FamilyS237
Insert Geometry
Depth of Cut Max — mm (APMX)76.2 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648844
EAN7320760848913
File Type Download

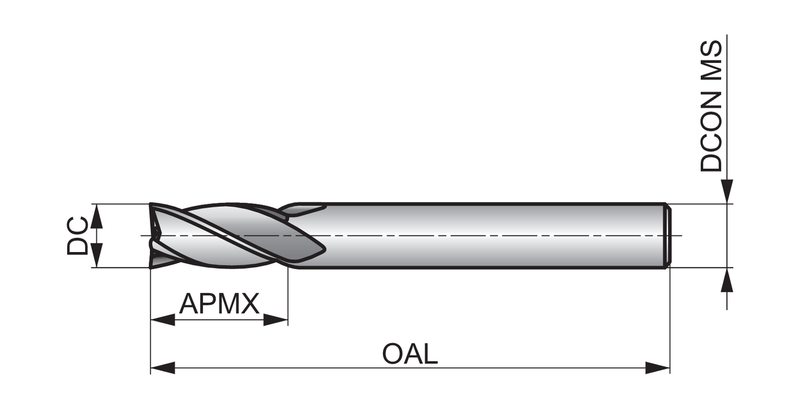

S2371 — Line Drawing PDF Download
