S1381/2
S1381/2

S1381/2

UGC DOR7648854
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.16 CAD - $86.16 CAD
$86.16 CAD
$86.16 CAD - $86.16 CAD
$86.16 CAD

Vendu en lots de : 1

Fraise carbure monobloc à tête sphérique, 4 goujures, à coupe normale, diamètre 1/2" avec une longueur de coupe de 1", longueur totale 3" et rayon de profil plein de 1/4", selon la norme DORMER, avec queue cylindrique 1/2", finition brillante, hélice 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, la fonte ductile et la fonte à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1381/2
GradeLumineux
Product Number7648854
Product FamilyS138
Insert Geometry
Corner Radius — in (RE)0.25"
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648854
EAN7320760849019
File Type Download

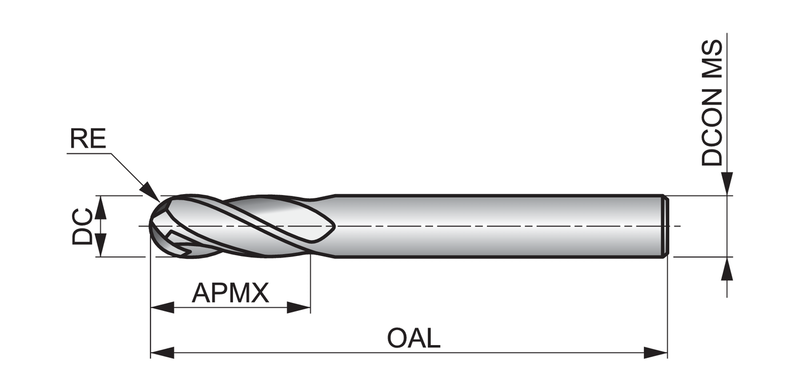

S1381/2 — Line Drawing PDF Download
