S2381/16
S2381/16

S2381/16

UGC DOR7648857
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.84 CAD - $23.84 CAD
$23.84 CAD
$23.84 CAD - $23.84 CAD
$23.84 CAD

Vendu en lots de : 1

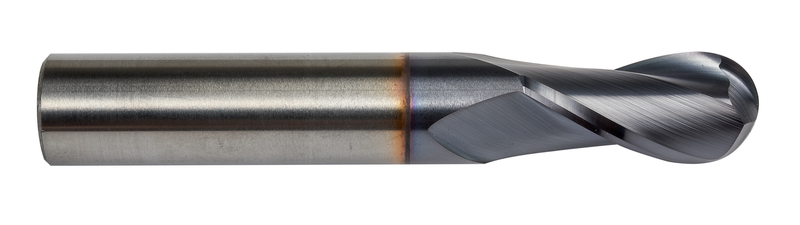

Fraise à l'extrémité sphérique de longueur régulière avec 4 goujures, diamètre de 1/16" avec une longueur de coupe de 1/4", longueur totale de 1,1/2" et rayon de profil complet de 1/32", selon la norme DORMER avec une queue cylindrique de 1/8", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2381/16
GradeTiAlN
Product Number7648857
Product FamilyS238
Insert Geometry
Corner Radius — in (RE)0.031"
Depth of Cut Max — mm (APMX)6.35 mm
Dimensions
Cutting Diameter — in (DC)0.0625"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648857
EAN7320760849040
File Type Download
S2381/16 — Line Drawing PDF Download
