S2383/32
S2383/32

S2383/32

UGC DOR7648858
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.47 CAD - $23.47 CAD
$23.47 CAD
$23.47 CAD - $23.47 CAD
$23.47 CAD

Vendu en lots de : 1

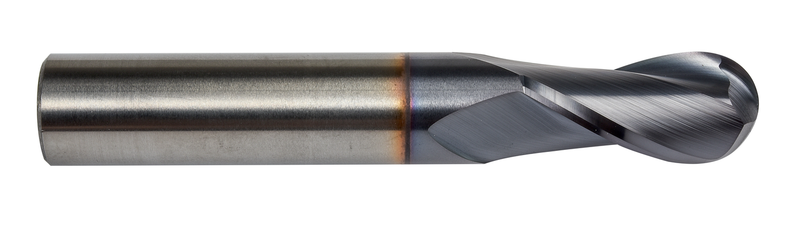

Fraise à l'hélice à bout sphérique de longueur normale à 4 dents, diamètre 3/32" avec longueur de coupe 3/8", longueur totale 1.1/2" et rayon plein profil 3/64", selon la norme DORMER avec une queue cylindrique de 1/8", en carbure monobloc avec revêtement TiAlN, hélice 30° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2383/32
GradeTiAlN
Product Number7648858
Product FamilyS238

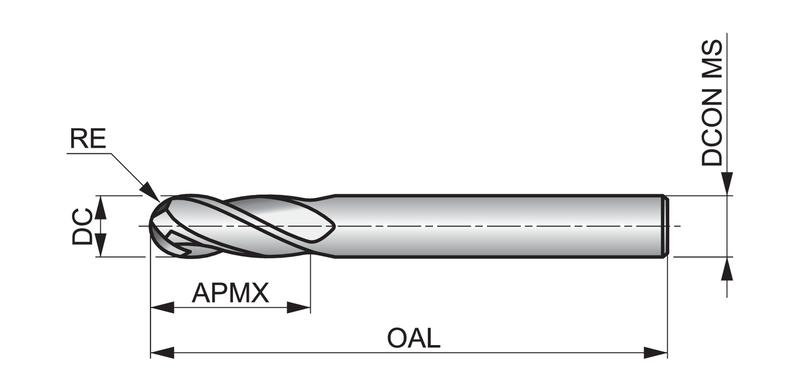

Insert Geometry
Corner Radius — in (RE)0.047"
Depth of Cut Max — mm (APMX)9.53 mm
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648858
EAN7320760849057
File Type Download
S2383/32 — Line Drawing PDF Download
