S2385/32
S2385/32

S2385/32

UGC DOR7648860
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.24 CAD - $32.24 CAD
$32.24 CAD
$32.24 CAD - $32.24 CAD
$32.24 CAD

Vendu en lots de : 1

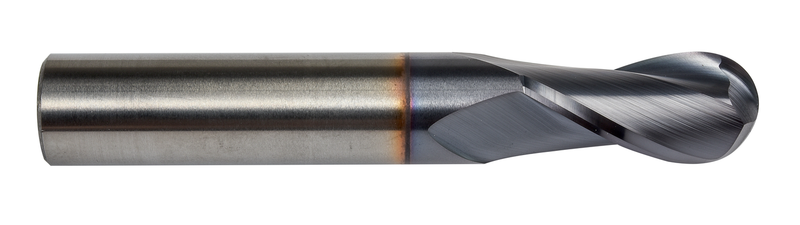

Fraise en bout hémisphérique à queue cylindrique de longueur normale, 4 dents, diamètre 5/32" avec longueur de coupe 9/16", longueur totale 2" et rayon de profil complet 5/64", selon la norme DORMER avec une queue lisse 3/16", carbure monobloc avec revêtement TiAlN, hélice 30° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2385/32
GradeTiAlN
Product Number7648860
Product FamilyS238
Insert Geometry
Corner Radius — in (RE)0.078"
Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648860
EAN7320760849071
File Type Download
S2385/32 — Line Drawing PDF Download
