S2383/16
S2383/16

S2383/16

UGC DOR7648861
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.23 CAD - $28.23 CAD
$28.23 CAD
$28.23 CAD - $28.23 CAD
$28.23 CAD

Vendu en lots de : 1

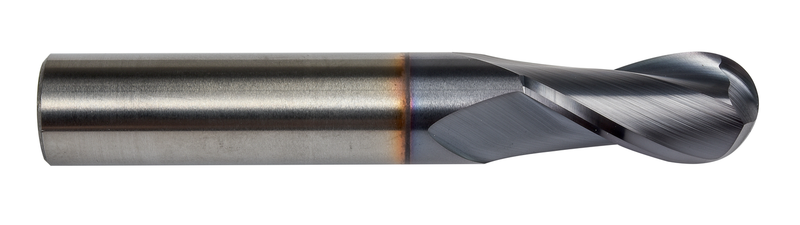

Fraise en bout hémisphérique de longueur normale, 4 dents, diamètre 3/16" avec une longueur de coupe de 5/8", une longueur totale de 2" et un rayon de profil complet de 3/32", selon la norme DORMER avec une queue cylindrique de 3/16", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2383/16
GradeTiAlN
Product Number7648861
Product FamilyS238

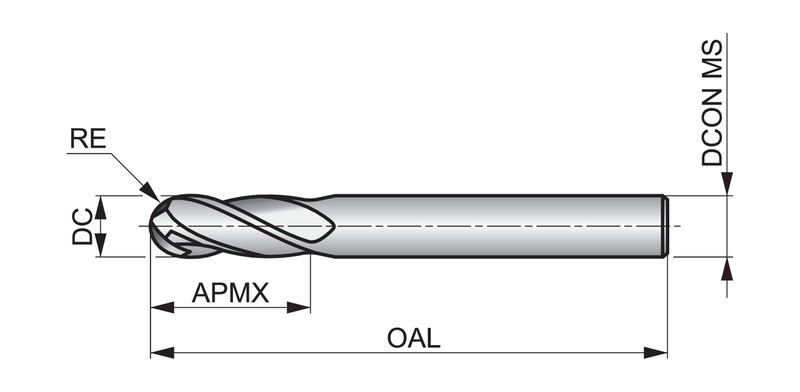

Insert Geometry
Corner Radius — in (RE)0.094"
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648861
EAN7320760849088
File Type Download
S2383/16 — Line Drawing PDF Download
