S2385/16
S2385/16

S2385/16

UGC DOR7648863
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.76 CAD - $52.76 CAD
$52.76 CAD
$52.76 CAD - $52.76 CAD
$52.76 CAD

Vendu en lots de : 1

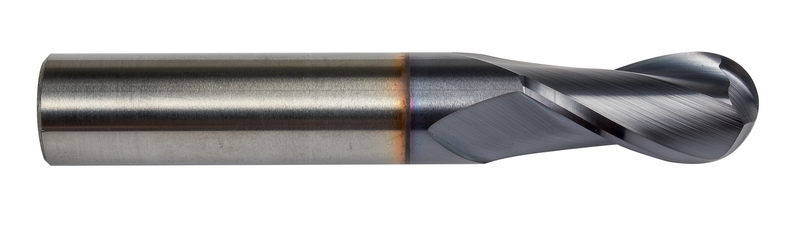

Fraise à l'extrémité sphérique de longueur standard, 4 cannelures, diamètre 5/16" avec une longueur de coupe de 7/8", une longueur totale de 2.1/2" et un rayon de profil complet de 5/32", selon la norme DORMER avec une queue cylindrique de 5/16", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage par copiage dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2385/16
GradeTiAlN
Product Number7648863
Product FamilyS238

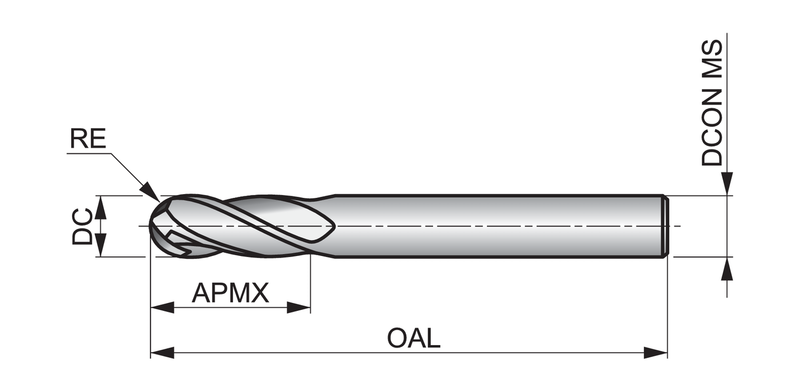

Insert Geometry
Corner Radius — in (RE)0.156"
Depth of Cut Max — mm (APMX)22.23 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648863
EAN7320760849101
File Type Download
S2385/16 — Line Drawing PDF Download
