S2383/8
S2383/8

S2383/8

UGC DOR7648864
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.31 CAD - $61.31 CAD
$61.31 CAD
$61.31 CAD - $61.31 CAD
$61.31 CAD

Vendu en lots de : 1

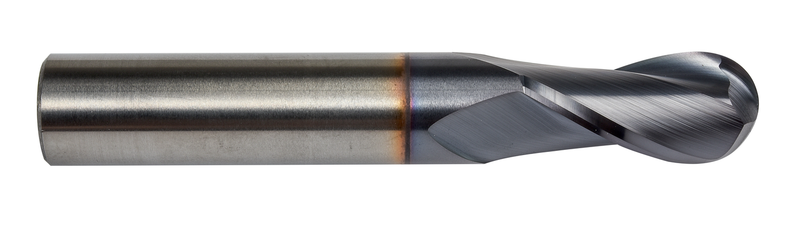

Fraise à rayon de bout sphérique à longueur normale à 4 dents, diamètre 3/8" avec une longueur de coupe de 7/8", longueur totale de 2.1/2" et rayon de profil complet de 3/16", selon la norme DORMER avec une queue cylindrique de 3/8", carbure monobloc avec revêtement TiAlN, hélice à 30° pour la copie de surfaces en acier et acier moulé, acier inoxydable et fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2383/8
GradeTiAlN
Product Number7648864
Product FamilyS238

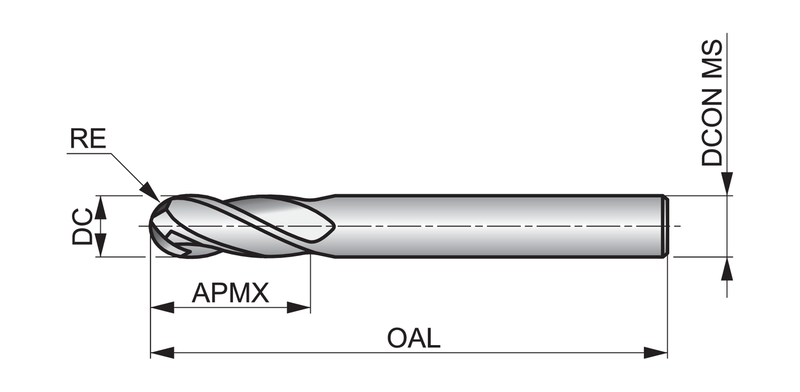

Insert Geometry
Corner Radius — in (RE)0.188"
Depth of Cut Max — mm (APMX)22.23 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648864
EAN7320760849118
File Type Download
S2383/8 — Line Drawing PDF Download
