S2387/16
S2387/16

S2387/16

UGC DOR7648865
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.70 CAD - $77.70 CAD
$77.70 CAD
$77.70 CAD - $77.70 CAD
$77.70 CAD

Vendu en lots de : 1

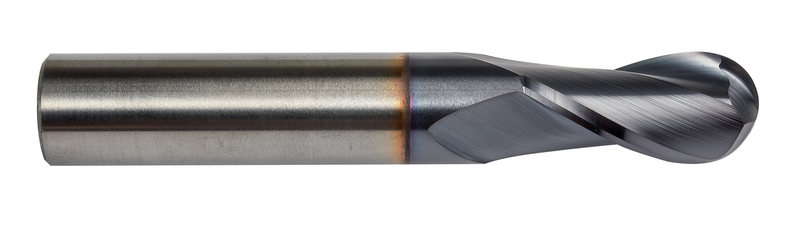

Fraise boule de longueur standard avec 4 dents, diamètre 7/16" avec longueur de coupe de 1", longueur totale de 2.1/2" et rayon de profil complet de 7/32", selon la norme DORMER avec une queue cylindrique de 7/16", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en copiage dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2387/16
GradeTiAlN
Product Number7648865
Product FamilyS238
Insert Geometry
Corner Radius — in (RE)0.219"
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648865
EAN7320760849125
File Type Download
S2387/16 — Line Drawing PDF Download
