S2383/4
S2383/4

S2383/4

UGC DOR7648868
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.74 CAD - $235.74 CAD
$235.74 CAD
$235.74 CAD - $235.74 CAD
$235.74 CAD

Vendu en lots de : 1

Fraise à l'extrémité sphérique de longueur normale à 4 dents, diamètre 3/4" avec une longueur de coupe de 1,1/2", une longueur totale de 4" et un rayon de profil complet de 3/8", selon la norme DORMER avec une queue cylindrique de 3/4", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2383/4
GradeTiAlN
Product Number7648868
Product FamilyS238

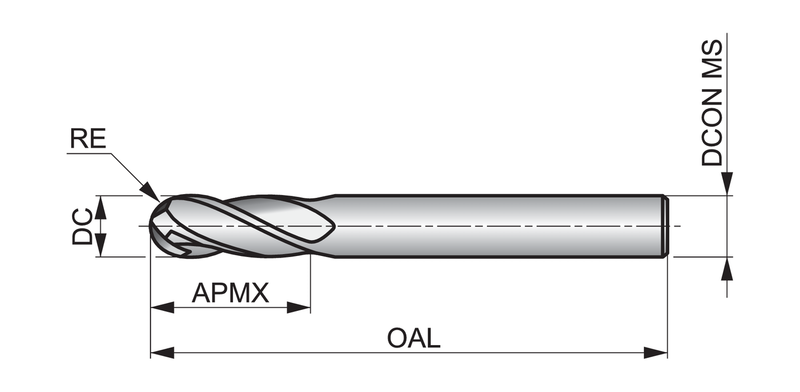

Insert Geometry
Corner Radius — in (RE)0.375"
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648868
EAN7320760849156
File Type Download
S2383/4 — Line Drawing PDF Download
