S1394.5
S1394.5

S1394.5

UGC DOR7648874
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.66 CAD - $29.66 CAD
$29.66 CAD
$29.66 CAD - $29.66 CAD
$29.66 CAD

Vendu en lots de : 1

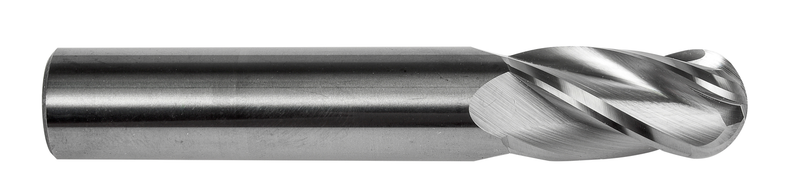

Fraise à rayon de bout sphérique de longueur standard, 4 arêtes, diamètre 4,5 mm avec 14 mm de longueur de coupe, 50 mm de longueur totale et rayon de profil complet de 2,25 mm, selon la norme DORMER avec une queue cylindrique de 5 mm, en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage en copiage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1394.5
GradeLumineux
Product Number7648874
Product FamilyS139

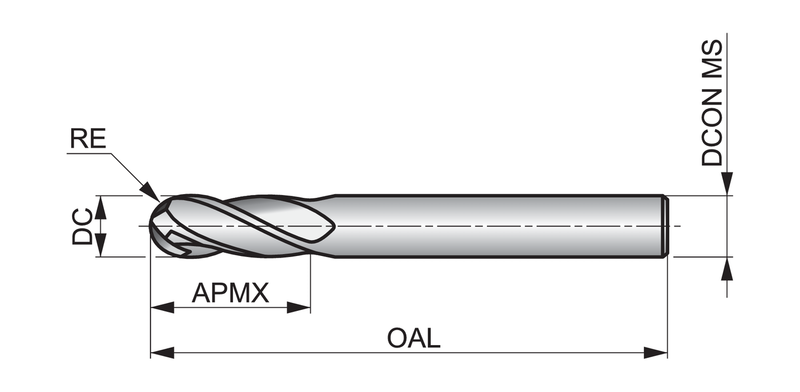

Insert Geometry
Corner Radius — in (RE)0.089"
Corner Radius — mm (RE)2.25 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648874
EAN7320760849217
File Type Download
S1394.5 — Line Drawing PDF Download
