S1393.0
S1393.0

S1393.0

UGC DOR7648876
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.69 CAD - $18.69 CAD
$18.69 CAD
$18.69 CAD - $18.69 CAD
$18.69 CAD

Vendu en lots de : 1

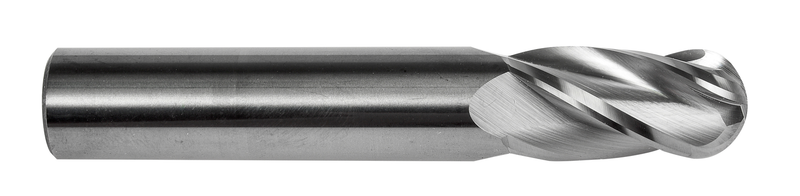

Fraise en bout hémisphérique longueur normale, 4 dents, diamètre 3 mm, longueur de coupe 12 mm, longueur totale 38 mm et rayon de profil complet 1,5 mm, conforme à la norme DORMER, avec queue cylindrique de 3 mm, en carbure monobloc finition brillante, hélice 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, la fonte ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1393.0
GradeLumineux
Product Number7648876
Product FamilyS139
Insert Geometry
Corner Radius — in (RE)0.059"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648876
EAN7320760849231
File Type Download

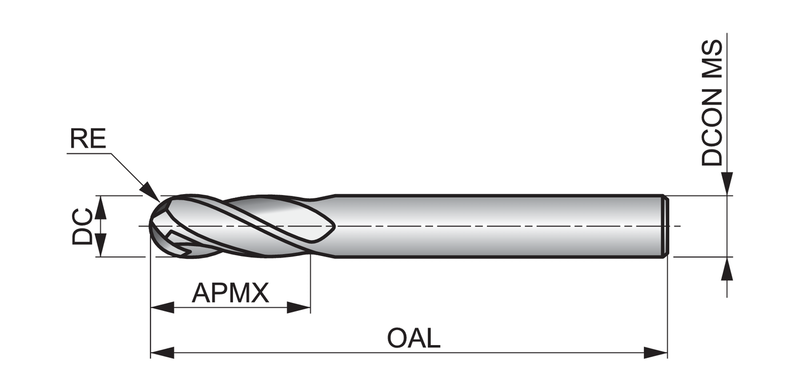

S1393.0 — Line Drawing PDF Download
