S2393.0
S2393.0

S2393.0

UGC DOR7648879
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.57 CAD - $22.57 CAD
$22.57 CAD
$22.57 CAD - $22.57 CAD
$22.57 CAD

Vendu en lots de : 1

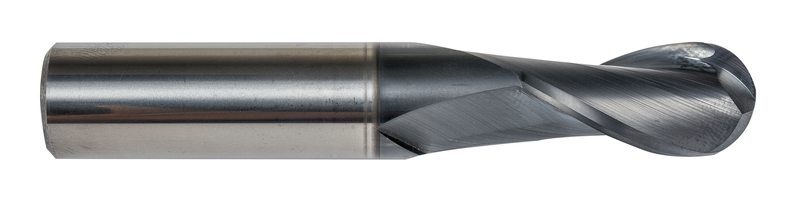

Fraise carbure monobloc à quatre dents, de forme hémisphérique, diamètre 3 mm et longueur de coupe 12 mm, queue lisse de 3 mm de diamètre et longueur totale 38 mm, rayon de 1,5 mm selon la norme DORMER, revêtement TiAlN, hélice 30° pour copiage dans les aciers, aciers alliés, aciers inoxydables et fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2393.0
GradeTiAlN
Product Number7648879
Product FamilyS239

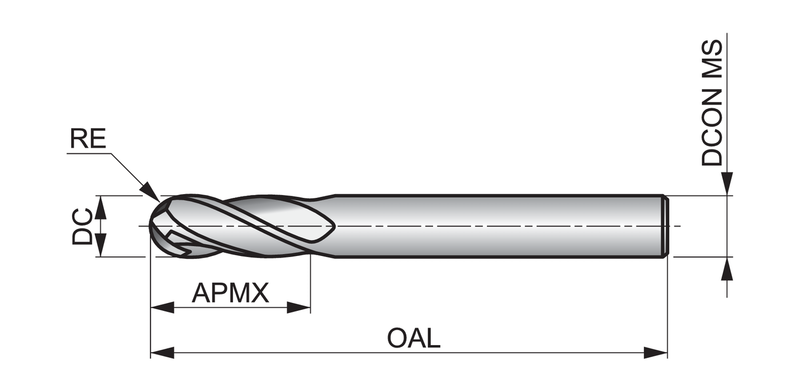

Insert Geometry
Corner Radius — in (RE)0.059"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648879
EAN7320760849262
File Type Download
S2393.0 — Line Drawing PDF Download
