S23912.0
S23912.0

S23912.0

UGC DOR7648885
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$107.83 CAD - $107.83 CAD
$107.83 CAD
$107.83 CAD - $107.83 CAD
$107.83 CAD

Vendu en lots de : 1

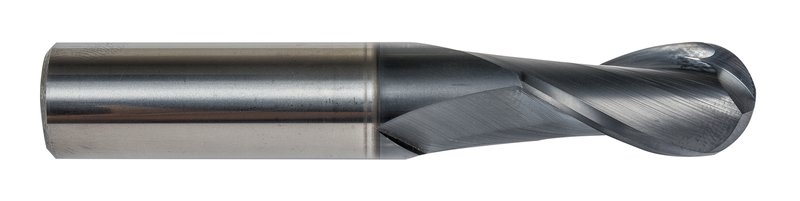

Fraise à rayonner à queue cylindrique de longueur standard, 4 dents, diamètre 12mm avec longueur de coupe de 25mm, longueur totale de 75mm et rayon de profil complet de 6mm, selon la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en dépouille dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S23912.0
GradeTiAlN
Product Number7648885
Product FamilyS239
Insert Geometry
Corner Radius — in (RE)0.236"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648885
EAN7320760849323
File Type Download
S23912.0 — Line Drawing PDF Download
