S1465/8
S1465/8

S1465/8

UGC DOR7648889
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$179.71 CAD - $179.71 CAD
$179.71 CAD
$179.71 CAD - $179.71 CAD
$179.71 CAD

Vendu en lots de : 1

Fraise à rayon long avec 4 arêtes de coupe, diamètre 5/8" avec une longueur de coupe de 2.1/4", une longueur totale de 5" et un rayon de profil complet de 5/16", selon la norme DORMER avec une queue cylindrique de 5/8", en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1465/8
GradeLumineux
Product Number7648889
Product FamilyS146

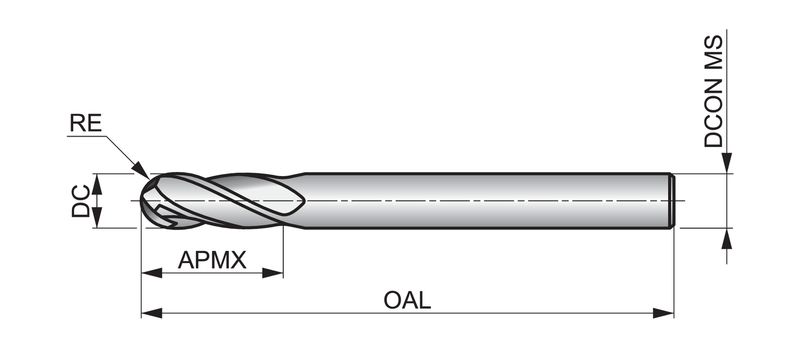

Insert Geometry
Corner Radius — in (RE)0.313"
Depth of Cut Max — mm (APMX)57.15 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648889
EAN7320760849361
File Type Download
S1465/8 — Line Drawing PDF Download
