S2461/4
S2461/4

S2461/4

UGC DOR7648890
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.11 CAD - $51.11 CAD
$51.11 CAD
$51.11 CAD - $51.11 CAD
$51.11 CAD

Vendu en lots de : 1

Fraise à lamer hémisphérique de série longue à 4 dents, diamètre 1/4" avec une longueur de coupe de 1,1/8", une longueur totale de 3" et un rayon de profil complet de 1/8", selon la norme DORMER avec une queue cylindrique de 1/4", carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage de reproduction dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2461/4
GradeTiAlN
Product Number7648890
Product FamilyS246

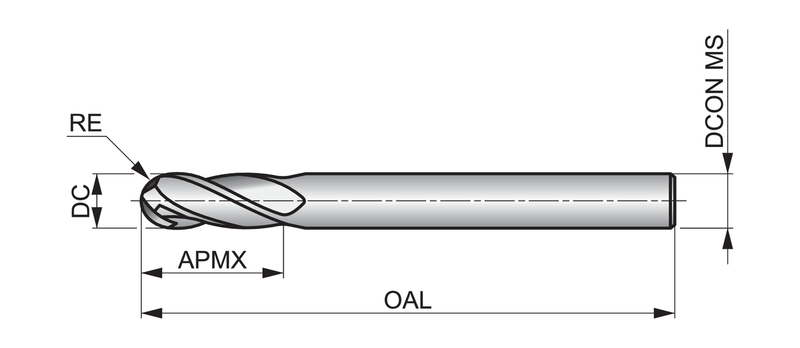

Insert Geometry
Corner Radius — in (RE)0.125"
Depth of Cut Max — mm (APMX)28.58 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648890
EAN7320760849378
File Type Download
S2461/4 — Line Drawing PDF Download
