S2463/8
S2463/8

S2463/8

UGC DOR7648891
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.81 CAD - $79.81 CAD
$79.81 CAD
$79.81 CAD - $79.81 CAD
$79.81 CAD

Vendu en lots de : 1

Fraise à bout sphérique série longue avec 4 arêtes, diamètre 3/8" avec longueur de coupe de 1.1/8", longueur totale de 3" et rayon de profil complet de 3/16", selon la norme DORMER avec une queue cylindrique de 3/8", carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2463/8
GradeTiAlN
Product Number7648891
Product FamilyS246

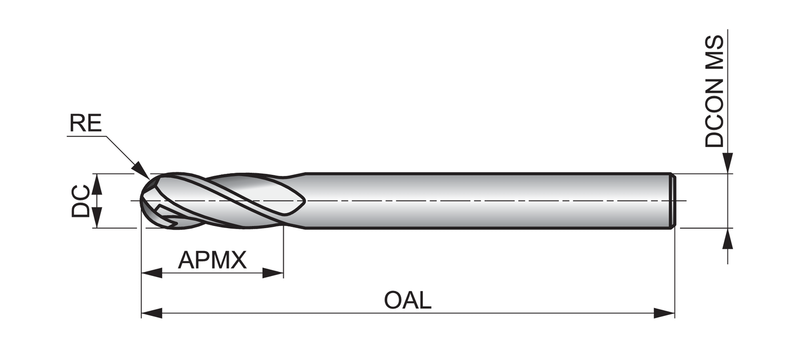

Insert Geometry
Corner Radius — in (RE)0.188"
Depth of Cut Max — mm (APMX)28.58 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648891
EAN7320760849385
File Type Download
S2463/8 — Line Drawing PDF Download
