S1473/16
S1473/16

S1473/16

UGC DOR7648895
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.87 CAD - $42.87 CAD
$42.87 CAD
$42.87 CAD - $42.87 CAD
$42.87 CAD

Vendu en lots de : 1

Fraise à l'extrémité sphérique de la série extra longue à 4 cannelures, diamètre 3/16" avec 1.1/8" longueur de coupe, 3" longueur totale et 3/32" rayon de profil complet, selon la norme DORMER avec une queue cylindrique 3/16", carbure monobloc finition brillante, hélice 30° pour le fraisage de reproduction dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1473/16
GradeLumineux
Product Number7648895
Product FamilyS147
Insert Geometry
Corner Radius — in (RE)0.094"
Depth of Cut Max — mm (APMX)28.58 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648895
EAN7320760849422
File Type Download

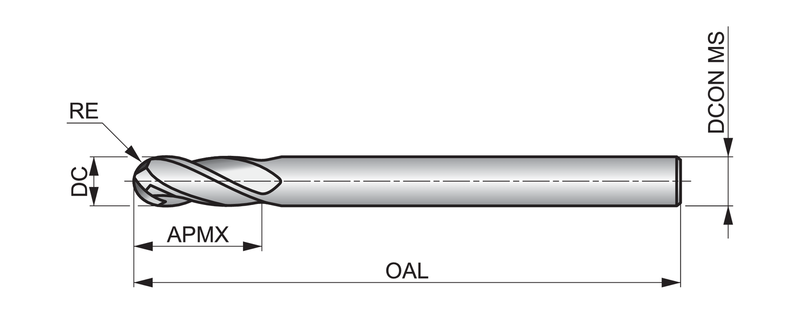

S1473/16 — Line Drawing PDF Download
