S1471/4
S1471/4

S1471/4

UGC DOR7648896
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.37 CAD - $49.37 CAD
$49.37 CAD
$49.37 CAD - $49.37 CAD
$49.37 CAD

Vendu en lots de : 1

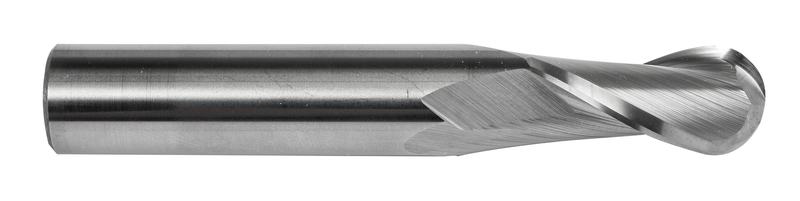

Fraise à lamer extra-longue à bout sphérique, 4 arêtes, diamètre 1/4" avec une longueur de coupe de 1,1/2", une longueur totale de 4" et un rayon de profil complet de 1/8", selon la norme DORMER avec une queue cylindrique de 1/4", carbure monobloc avec finition brillante, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1471/4
GradeLumineux
Product Number7648896
Product FamilyS147

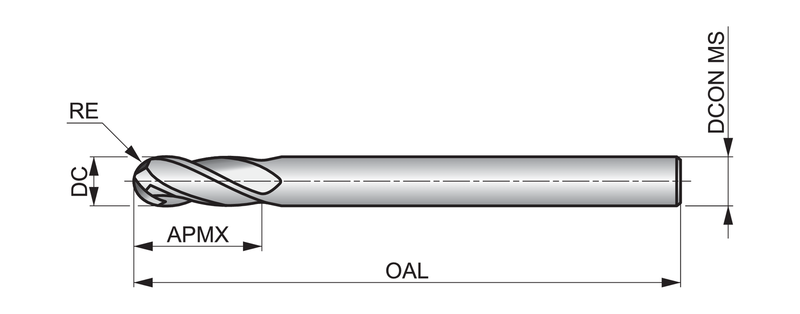

Insert Geometry
Corner Radius — in (RE)0.125"
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648896
EAN7320760849439
File Type Download
S1471/4 — Line Drawing PDF Download
