S1471/2
S1471/2

S1471/2

UGC DOR7648899
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$144.30 CAD - $144.30 CAD
$144.30 CAD
$144.30 CAD - $144.30 CAD
$144.30 CAD

Vendu en lots de : 1

Fraise à l'extrémité sphérique à queue longue, 4 dents, diamètre 1/2" avec 3" de longueur de coupe, 6" de longueur totale et 1/4" de rayon de profil complet, selon la norme DORMER avec une queue cylindrique de 1/2", en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage de reproduction dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1471/2
GradeLumineux
Product Number7648899
Product FamilyS147

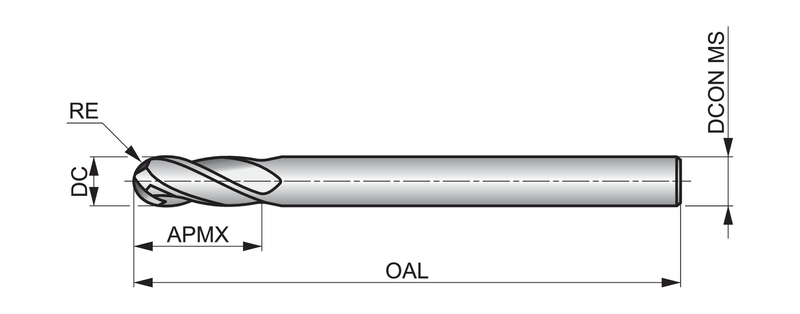

Insert Geometry
Corner Radius — in (RE)0.25"
Depth of Cut Max — mm (APMX)76.2 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648899
EAN7320760849460
File Type Download
S1471/2 — Line Drawing PDF Download
