S2471/2
S2471/2

S2471/2

UGC DOR7648906
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$178.66 CAD - $178.66 CAD
$178.66 CAD
$178.66 CAD - $178.66 CAD
$178.66 CAD

Vendu en lots de : 1

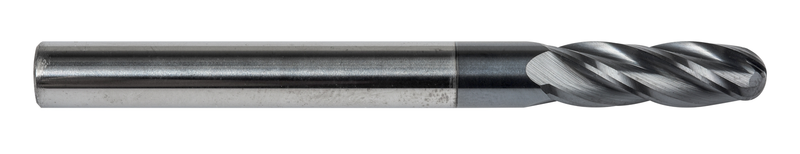

Fraise à l'extrémité sphérique série extra longue à 4 cannelures, diamètre 1/2" avec 3" de longueur de coupe, 6" de longueur totale et un rayon de profil complet de 1/4", selon la norme DORMER avec une queue cylindrique de 1/2", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage de reproduction dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2471/2
GradeTiAlN
Product Number7648906
Product FamilyS247

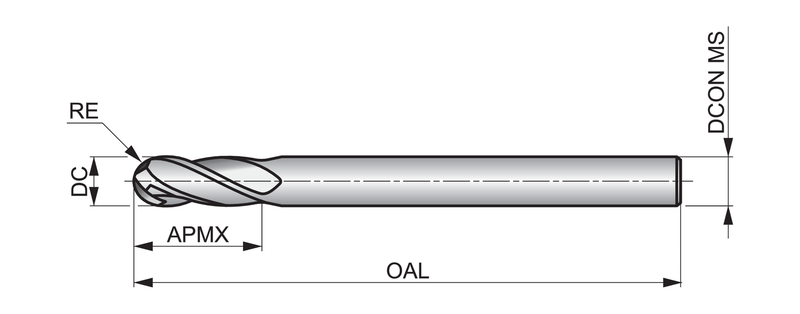

Insert Geometry
Corner Radius — in (RE)0.25"
Depth of Cut Max — mm (APMX)76.2 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de Travail
Reference Numbers
EDP Number7648906
EAN7320760849538
File Type Download
S2471/2 — Line Drawing PDF Download
