S2475/8
S2475/8

S2475/8

UGC DOR7648907
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$249.49 CAD - $249.49 CAD
$249.49 CAD
$249.49 CAD - $249.49 CAD
$249.49 CAD

Vendu en lots de : 1

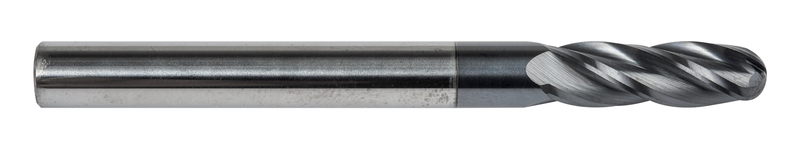

Fraise à l'hélice à bout sphérique extra-longue à 4 dents, diamètre 5/8" avec 3" de longueur de coupe, 6" de longueur totale et 5/16" de rayon de profil complet, selon la norme DORMER avec une queue cylindrique de 5/8", carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2475/8
GradeTiAlN
Product Number7648907
Product FamilyS247

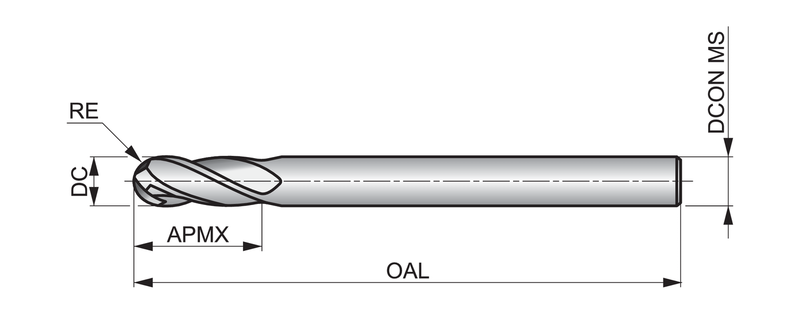

Insert Geometry
Corner Radius — in (RE)0.313"
Depth of Cut Max — mm (APMX)76.2 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648907
EAN7320760849545
File Type Download
S2475/8 — Line Drawing PDF Download
