S248HB3/8XR.015
S248HB3/8XR.015

S248HB3/8XR.015

UGC DOR7648929
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.11 CAD - $76.11 CAD
$76.11 CAD
$76.11 CAD - $76.11 CAD
$76.11 CAD

Vendu en lots de : 1

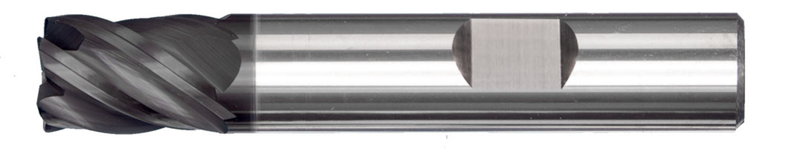

Fraise en bout à rayon d'angle de longueur normale, 5 dents, diamètre 3/8" avec longueur de coupe de 7/8", longueur totale de 2.1/2" et rayon de coin de 0.015", selon la norme DORMER avec une queue Weldon de 3/8", carbure monobloc avec revêtement AlTiN, hélice inégale pour le fraisage d'épaulement, le plongement, le fraisage progressif par plongement, le ramping, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les alliages haute température, la fonte trempée, la fonte durcie et l'acier trempé <55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S248HB3/8XR.015
GradeAlTiN
Product Number7648929
Product FamilyS248HB
Insert Geometry

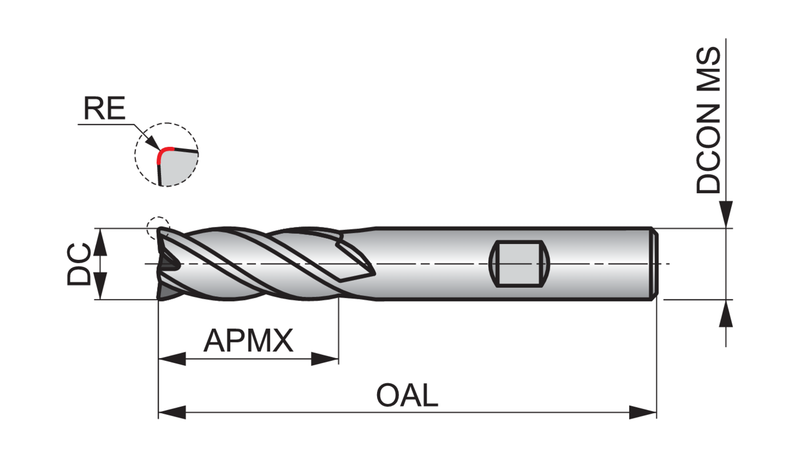

Corner Radius — in (RE)0.015"
Depth of Cut Max — mm (APMX)22.23 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number7648929
EAN7320760849767
File Type Download
S248HB3/8XR.015 — Line Drawing PDF Download
