R105/32-T
R105/32-T

R105/32-T

UGC PRE7652425
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.27 CAD - $9.27 CAD
$9.27 CAD
$9.27 CAD - $9.27 CAD
$9.27 CAD

Vendu en lots de : 12

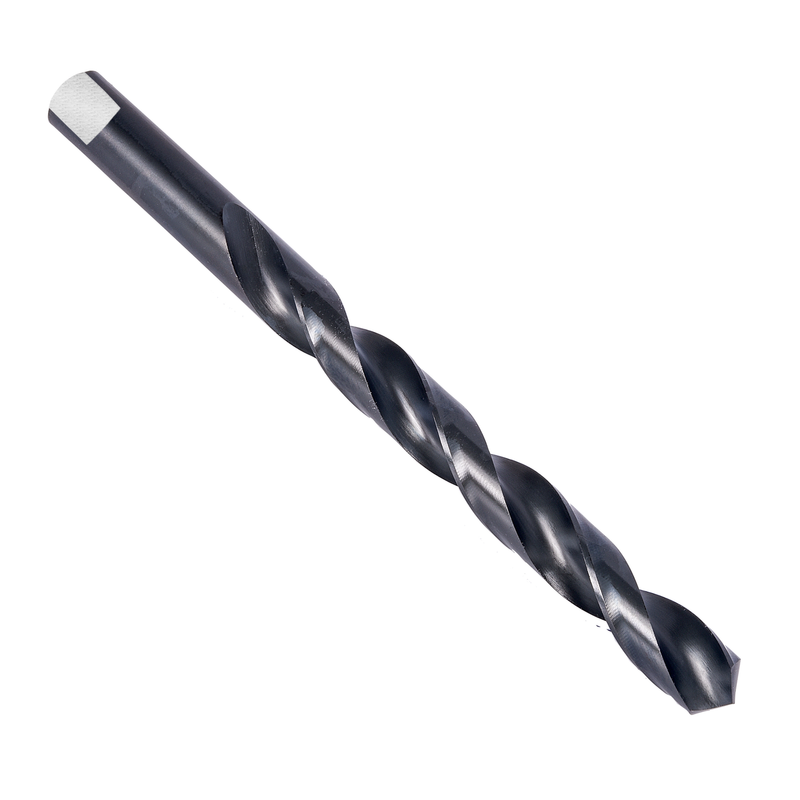

Foret série courte à queue cylindrique avec tenon, diamètre 0,1563" (5/32) d'une longueur totale de 3,1/8" et d'une longueur de goujure de 2" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition revenu vapeur pour le perçage à 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R105/32-T
GradeTrempé à la vapeur
Product Number7652425
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)3.125"
Overall Length — mm (OAL)79.38 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1563"
Connection Dia. — mm (DCON)3.97 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique avec soie
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number7652425
EAN7320760850473
File Type Download
R105/32-T — 3D Model STP Download
R105/32-T — Line Drawing PDF Download
