LNMT 311240SN-M:T9315
LNMT 311240SN-M:T9315

LNMT 311240SN-M:T9315

UGC DOR7661699
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.57 CAD - $78.57 CAD
$78.57 CAD
$78.57 CAD - $78.57 CAD
$78.57 CAD

Vendu en lots de : 5

Plaquette de tournage négative simple face, rectangulaire avec une arête principale de 31,75 mm de long, rayon de bec de 4,76 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux M avec arêtes de coupe arrondies avec facette, en nuance T9315, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05-P25, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMT 311240SN-M:T9315
GradeT9315
Chipbreaker (CBMD)M
Product Number7661699
Product FamilyTAEML

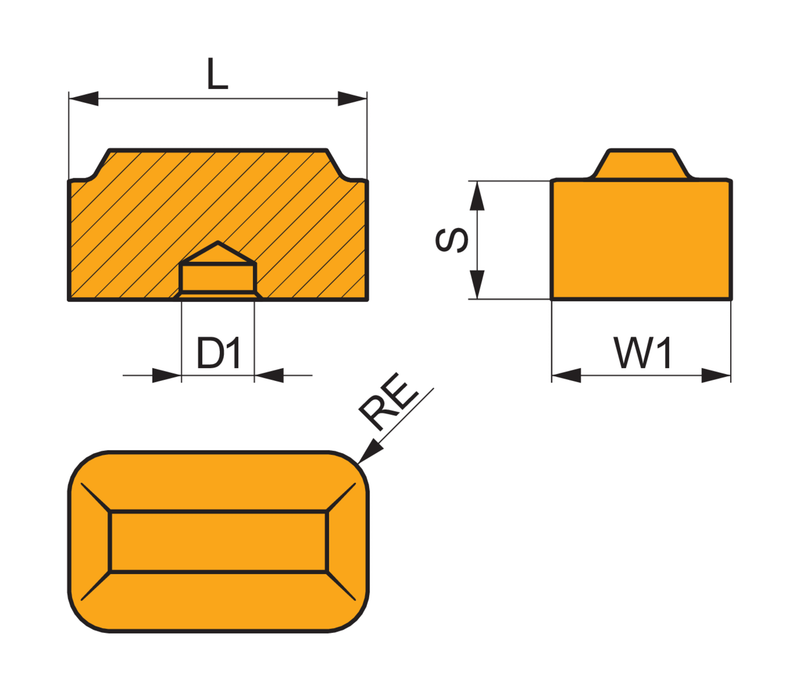

Insert Geometry
Insert DesignLTNM
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.5"
Insert Thickness — mm (S)12.7 mm
Corner Radius — in (RE)0.187"
Corner Radius — mm (RE)4.76 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number7661699
EAN3603603550070
File Type Download
LNMT 311240SN-M:T9315 — Line Drawing PDF Download
