P61.SFR-1616H-06
P61.SFR-1616H-06
P61.SFR-1616H-06

P61.SFR-1616H-06

UGC DOR7725306
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$265.00 CAD - $265.00 CAD
$265.00 CAD
$265.00 CAD - $265.00 CAD
$265.00 CAD

Vendu en lots de : 1

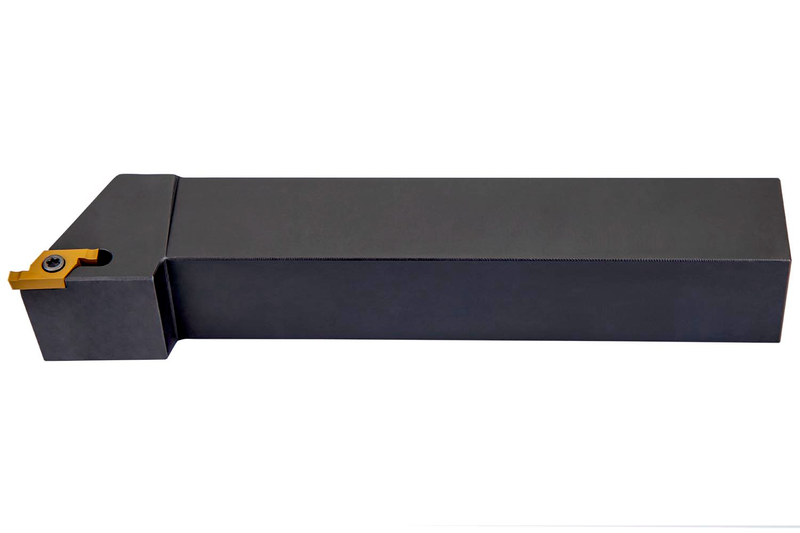

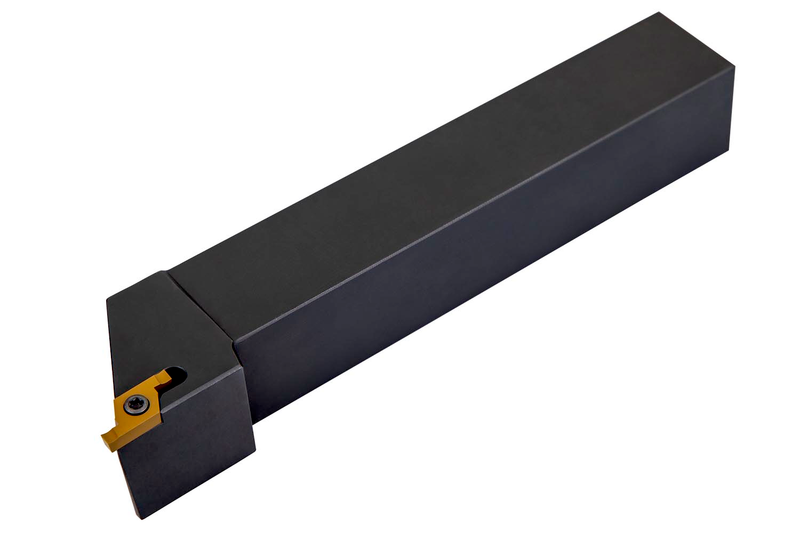

Outil de rainurage à vis pour plaquette double à double tranchant de 0,85 à 3,20 mm de largeur de coupe (désignation X61 0602..), à droite avec plaquette parallèle à la tige, hauteur de la tige 16 mm, largeur 16 mm et longueur de l'outil 100 mm pour le rainurage radial peu profond

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P61.SFR-1616H-06
Product Number7725306
Product FamilyP61(RL) EXT
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7725306
EAN3603603592902
File Type Download

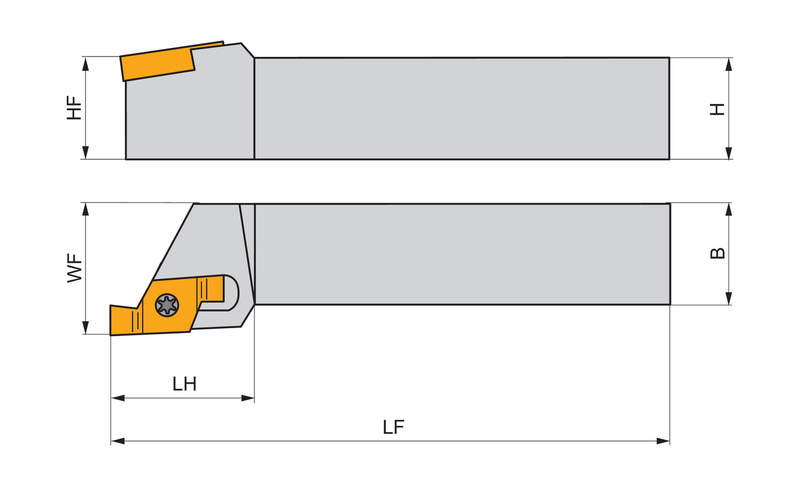

P61.SFR-1616H-06 — Line Drawing PDF Download
