P61.SFR-2020K-06
P61.SFR-2020K-06
P61.SFR-2020K-06

P61.SFR-2020K-06

UGC DOR7725307
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$265.00 CAD - $265.00 CAD
$265.00 CAD
$265.00 CAD - $265.00 CAD
$265.00 CAD

Vendu en lots de : 1

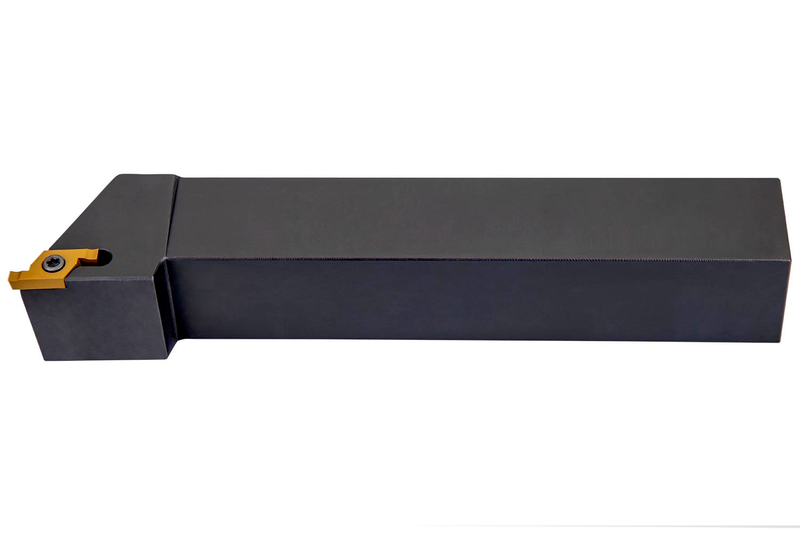

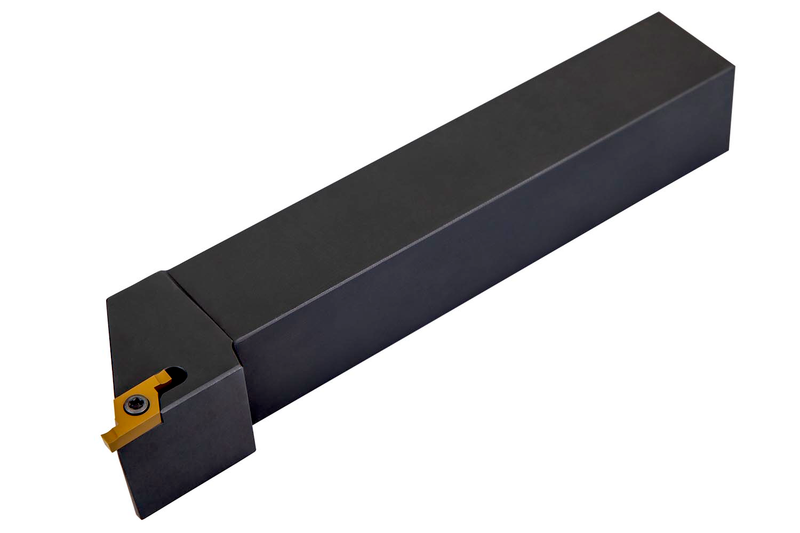

Outil de rainurage à plaquette vissée pour plaquette double face d'une largeur de coupe de 0,85 à 3,20 mm (désignation X61 0602.. ), droit avec la plaquette parallèle à la queue, hauteur de queue 20 mm, largeur 20 mm et longueur d'outil 125 mm pour le rainurage radial peu profond

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P61.SFR-2020K-06
Product Number7725307
Product FamilyP61(RL) EXT

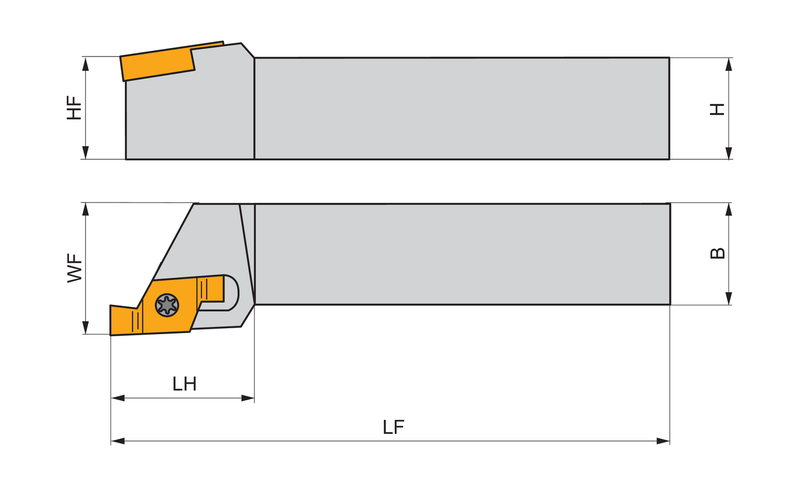

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7725307
EAN3603603592919
File Type Download
P61.SFR-2020K-06 — Line Drawing PDF Download
