P61.SGL-0010M-06/1
P61.SGL-0010M-06/1
P61.SGL-0010M-06/1

P61.SGL-0010M-06/1

UGC DOR7725310
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$511.00 CAD - $511.00 CAD
$511.00 CAD
$511.00 CAD - $511.00 CAD
$511.00 CAD

Vendu en lots de : 1

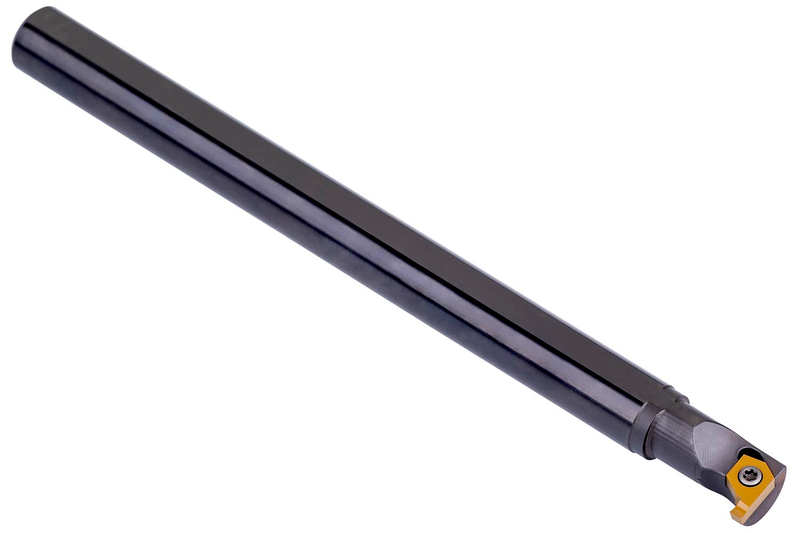

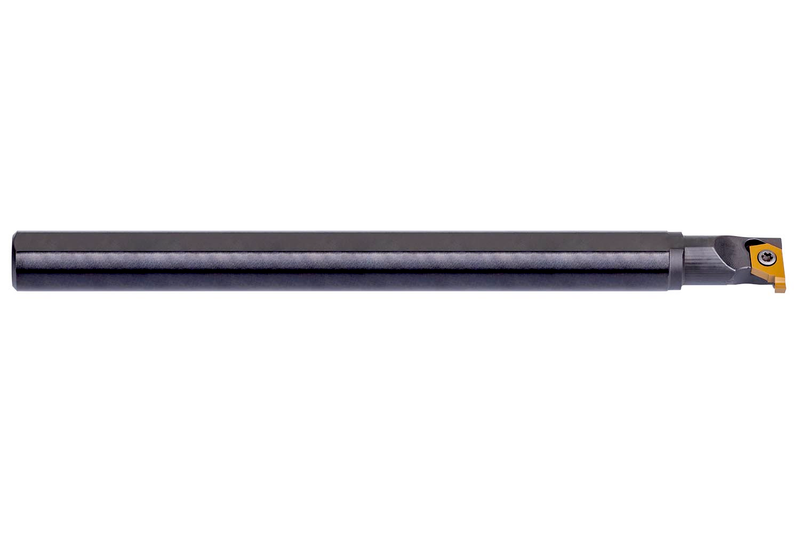

Barre à rainurer à bride avec vis, pour l'utilisation d'un insert simple de 0,85 à 2,20 mm de largeur de coupe (désignation X61 0602..-1), gauche, avec insert perpendiculaire à la queue, diamètre de queue 10 mm et longueur d'outil 150 mm, pour gorge interne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P61.SGL-0010M-06/1
Product Number7725310
Product FamilyP61S(RL)-1 INT

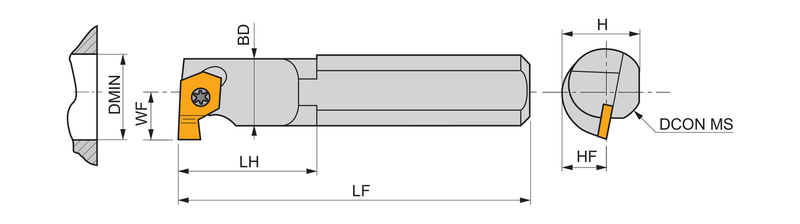

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Shank Height — mm (H)0.354 mm
Min. Bore Dia. — in (DMIN)0.492"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7725310
EAN3603603592940
File Type Download
P61.SGL-0010M-06/1 — Line Drawing PDF Download
