P61.SGR-0012M-06/1
P61.SGR-0012M-06/1
P61.SGR-0012M-06/1

P61.SGR-0012M-06/1

UGC DOR7725318
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$246.00 CAD - $246.00 CAD
$246.00 CAD
$246.00 CAD - $246.00 CAD
$246.00 CAD

Vendu en lots de : 1

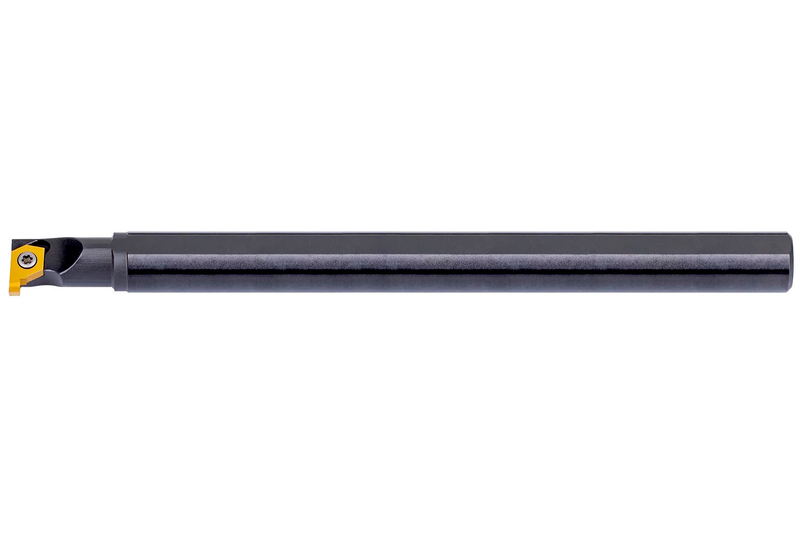

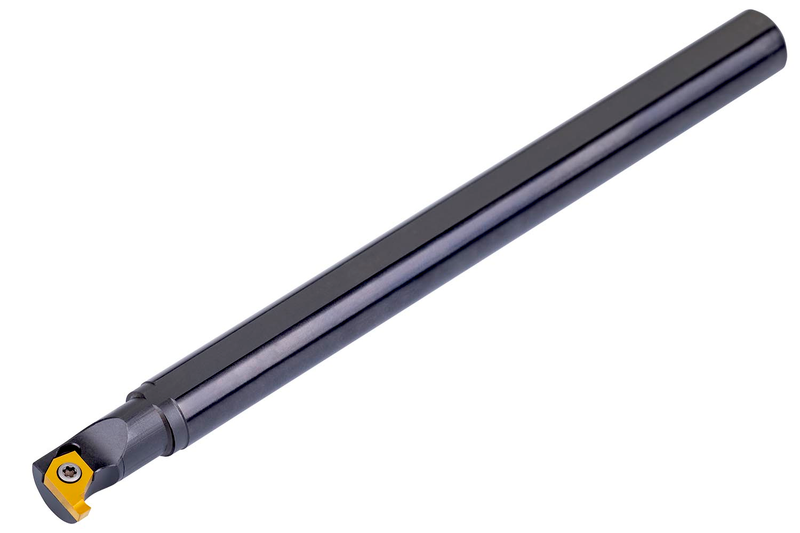

Barre de chariotage à serrage par vis pour la fixation d'un insert à une extrémité avec une largeur de coupe de 0,85-2,20 mm (désignation X61 0602..-1), à droite avec l'insert perpendiculaire à la queue, diamètre de queue de 12 mm et longueur d'outil de 150 mm pour le chariotage interne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P61.SGR-0012M-06/1
Product Number7725318
Product FamilyP61S(RL)-1 INT
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Shank Height — mm (H)0.433 mm
Min. Bore Dia. — in (DMIN)0.492"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7725318
EAN3603603597020
File Type Download

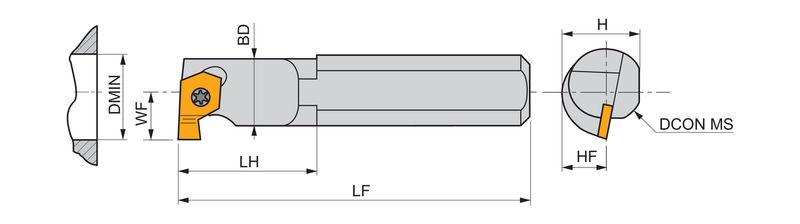

P61.SGR-0012M-06/1 — Line Drawing PDF Download
