P61.SGR-A-0016M-06
P61.SGR-A-0016M-06
P61.SGR-A-0016M-06

P61.SGR-A-0016M-06

UGC DOR7725319
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$265.00 CAD - $265.00 CAD
$265.00 CAD
$265.00 CAD - $265.00 CAD
$265.00 CAD

Vendu en lots de : 1

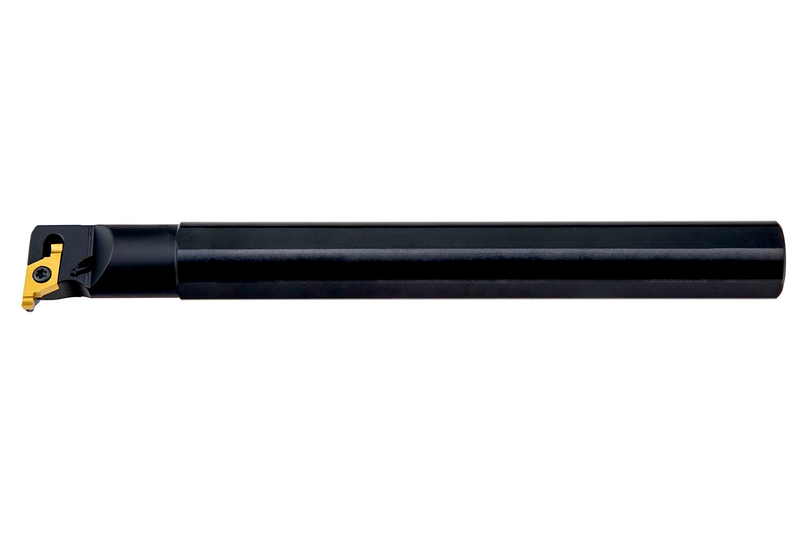

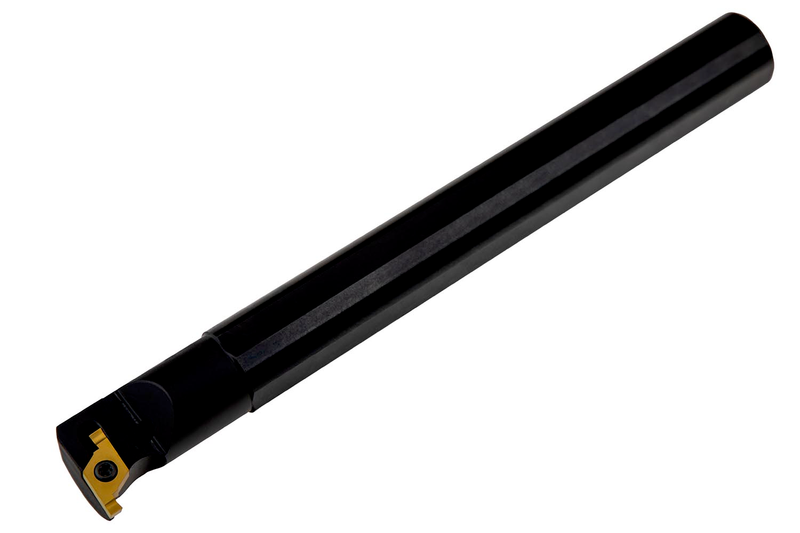

Barre de chariotage à vissage pour plaquette double à gorges de 0,85 à 3,20 mm de largeur de coupe (désignation X61 0602..), à droite avec plaquette perpendiculaire à la queue, diamètre de queue 16 mm et longueur d'outil 150 mm pour gorge intérieure

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P61.SGR-A-0016M-06
Product Number7725319
Product FamilyP61(RL) INT

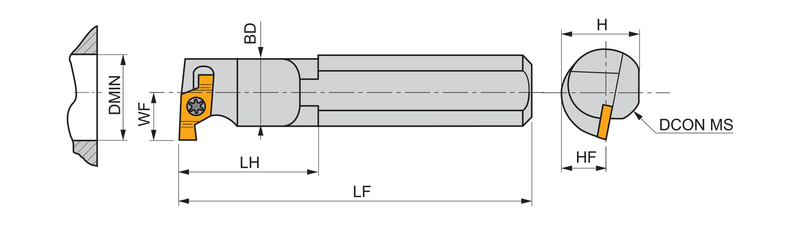

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7725319
EAN3603603597037
File Type Download
P61.SGR-A-0016M-06 — Line Drawing PDF Download
