P61.SGR-A-0020P-06
P61.SGR-A-0020P-06
P61.SGR-A-0020P-06

P61.SGR-A-0020P-06

UGC DOR7725320
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$296.00 CAD - $296.00 CAD
$296.00 CAD
$296.00 CAD - $296.00 CAD
$296.00 CAD

Vendu en lots de : 1

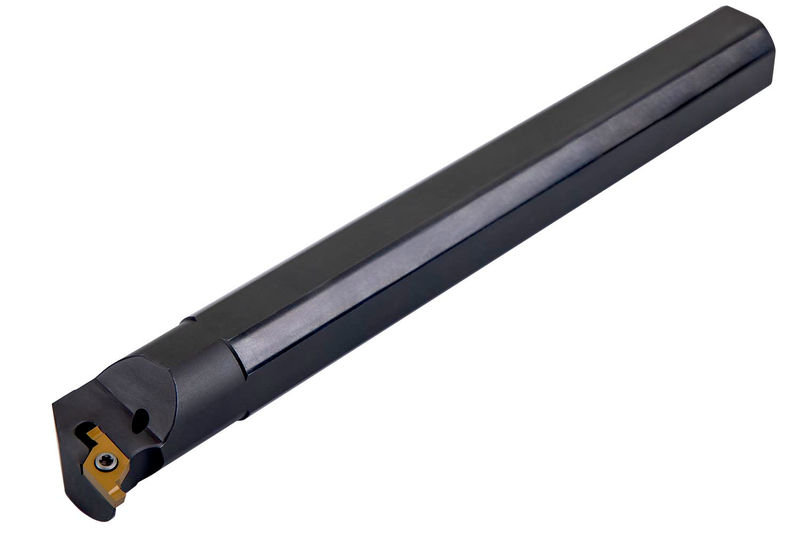

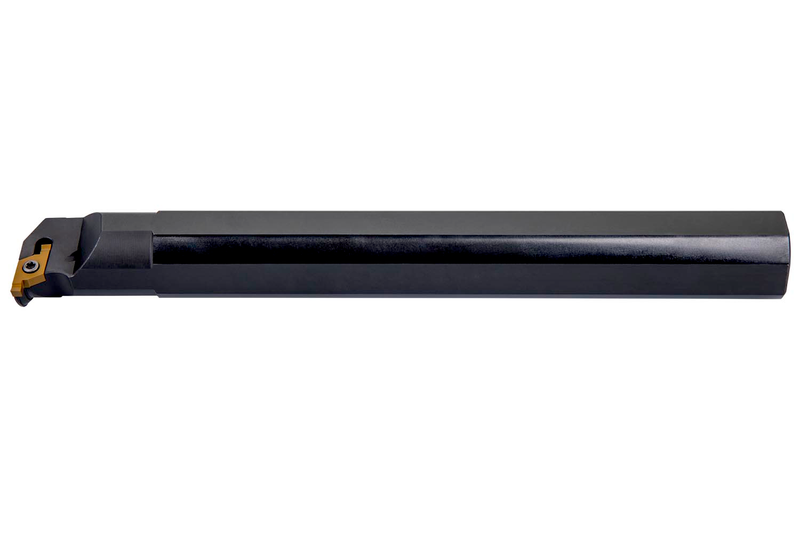

Barre d'alésage à serrage par vis pour plaquette double à gorges d'une largeur de coupe de 0,85-3,20 mm (désignation X61 0602.. ), droite avec plaquette perpendiculaire à la queue, diamètre de la queue 20 mm et longueur de l'outil 170 mm pour rainurage intérieur

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P61.SGR-A-0020P-06
Product Number7725320
Product FamilyP61(RL) INT

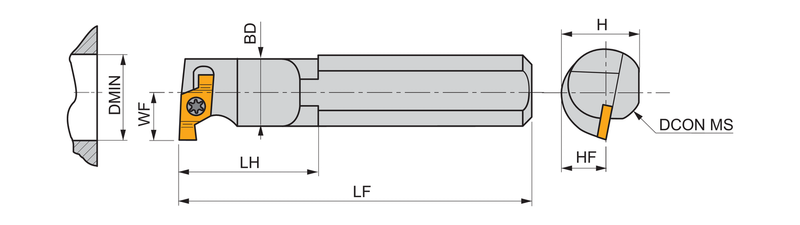

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7725320
EAN3603603597044
File Type Download
P61.SGR-A-0020P-06 — Line Drawing PDF Download
