CCMT 32.50.5-UR:T6310

CCMT 32.50.5-UR:T6310

UGC DOR7763056
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.64 CAD - $12.64 CAD
$12.64 CAD
$12.64 CAD - $12.64 CAD
$12.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 9,525 mm, épaisseur de 3,97 mm, rayon de bec de 0,2 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01-P15 et K05-K20, pour l'usinage fin à lourd des aciers et des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.50.5-UR:T6310
Product Name (ISO)CCMT 09T302E-UR:T6310
GradeT6310
Chipbreaker (CBMD)VOUS
Product Number7763056
Product FamilyCCMG

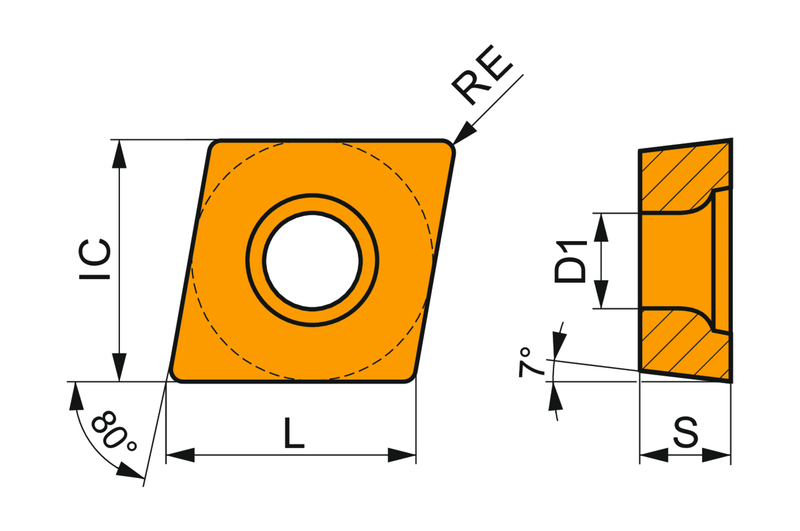

Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle interne rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7763056
EAN3603603627031
File Type Download
CCMT 32.50.5-UR:T6310 — Line Drawing PDF Download
