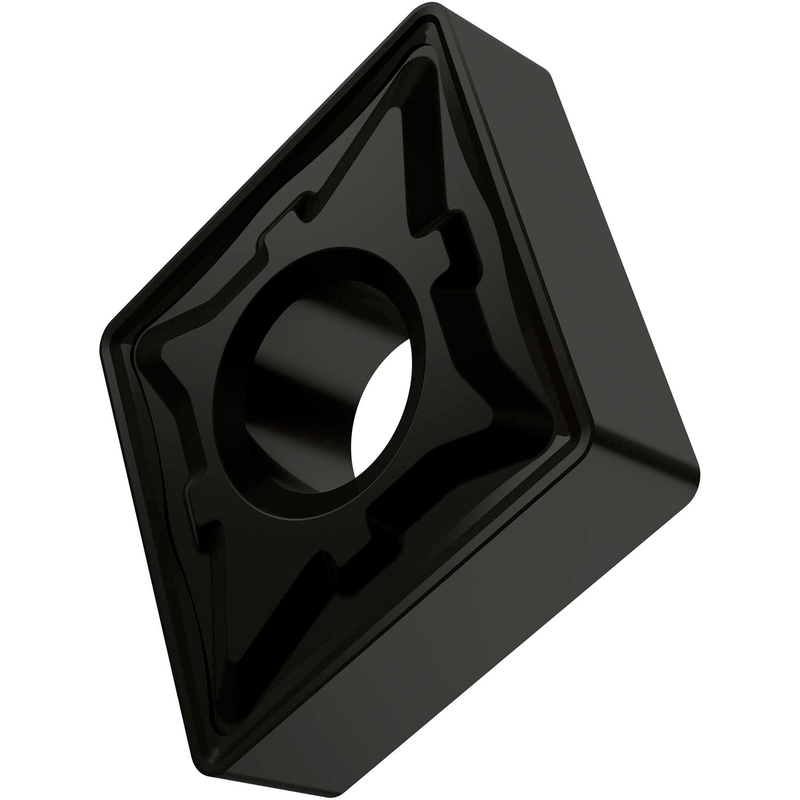

CNMG 543-R:T7335
CNMG 543-R:T7335

CNMG 543-R:T7335

UGC DOR7763058
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 15,575mm, 6,35mm d'épaisseur, rayon de bec de 1,2mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux R avec arêtes vives, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage moyen à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 543-R:T7335
Product Name (ISO)CNMG 160612E-R:T7335
GradeT7335
Chipbreaker (CBMD)R
Product Number7763058
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7763058
EAN3603603627055
File Type Download
CNMG 543-R:T7335 — Line Drawing PDF Download
