TNMG 333-SM:T6310
TNMG 333-SM:T6310

TNMG 333-SM:T6310

UGC DOR7763106
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

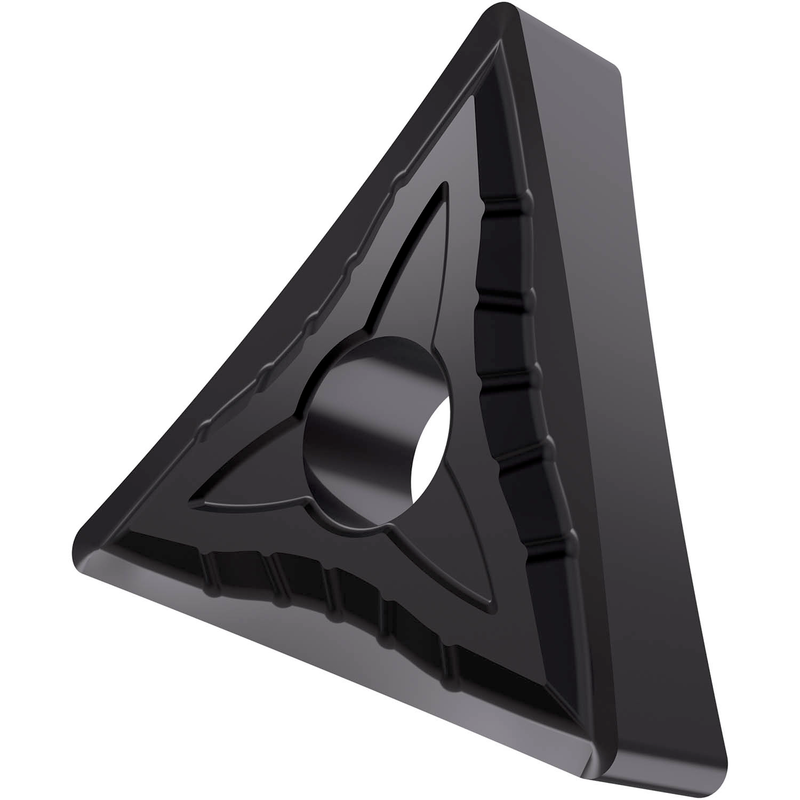

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 9,525 mm, épaisseur de 4,76 mm, rayon de bec de 1,2 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SM avec arêtes de coupe arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01 -P15/M01 -M15/K05 -K20 et S01 -S15, pour l'usinage de finition à l'ébauche des aciers, aciers inoxydables, fontes et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 333-SM:T6310
Product Name (ISO)TNMG 160412E-SM:T6310
GradeT6310
Chipbreaker (CBMD)SM
Product Number7763106
Product FamilyTNMG

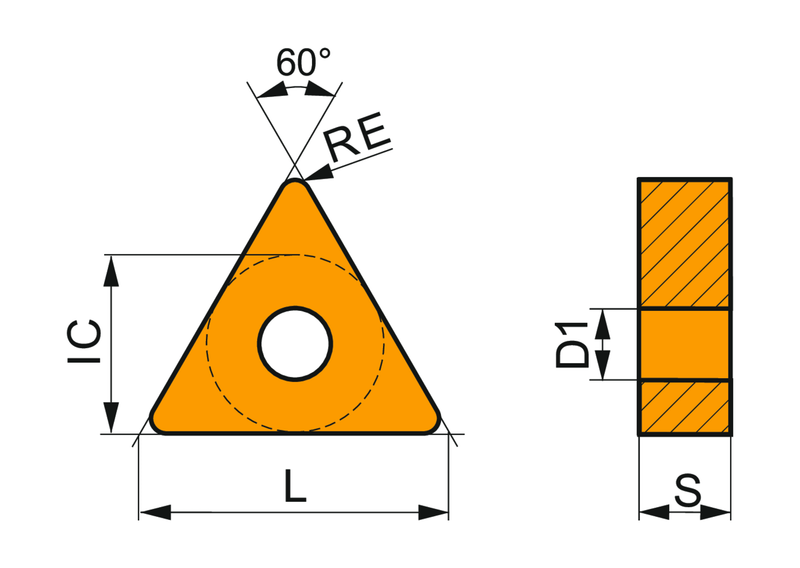

Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number7763106
EAN3603603627130
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
TNMG 333-SM:T6310 — Line Drawing PDF Download
