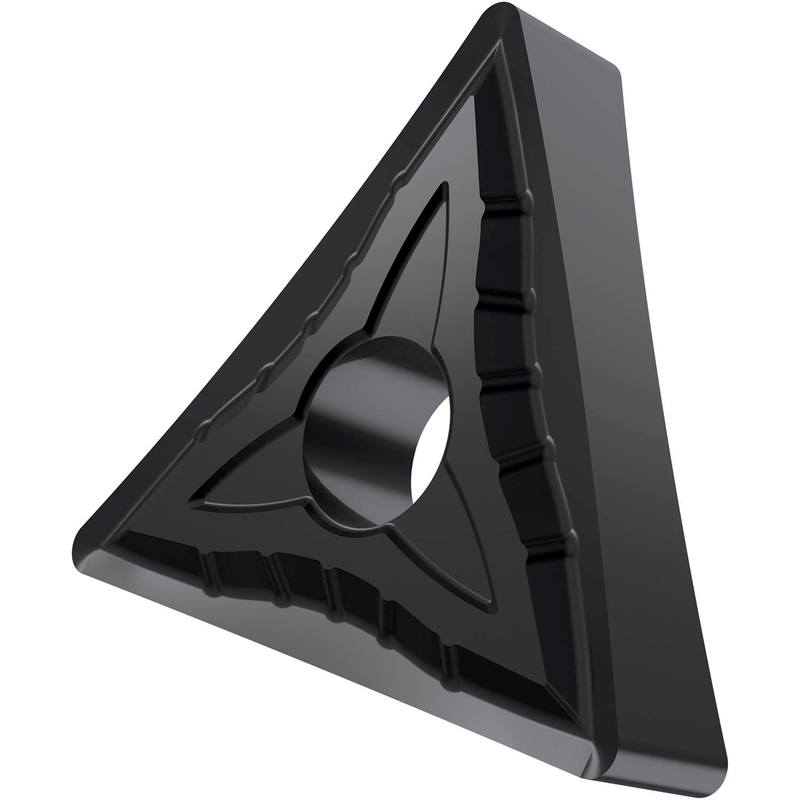

TNMG 431-SF:T6310
TNMG 431-SF:T6310

TNMG 431-SF:T6310

UGC DOR7763107
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.61 CAD - $15.61 CAD
$15.61 CAD
$15.61 CAD - $15.61 CAD
$15.61 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, triangulaire avec diamètre du cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, rayon de bec de 0,4 mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SF avec arêtes vives arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01-P15/M01-M15/K05-K20/S01-S15 et H01-H15, pour l'usinage fin à moyen des aciers, aciers inoxydables, fontes, superalliages et matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 431-SF:T6310
Product Name (ISO)TNMG 220404E-SF:T6310
GradeT6310
Chipbreaker (CBMD)SF
Product Number7763107
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angle inclus triangulaire de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7763107
EAN3603603627147
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
