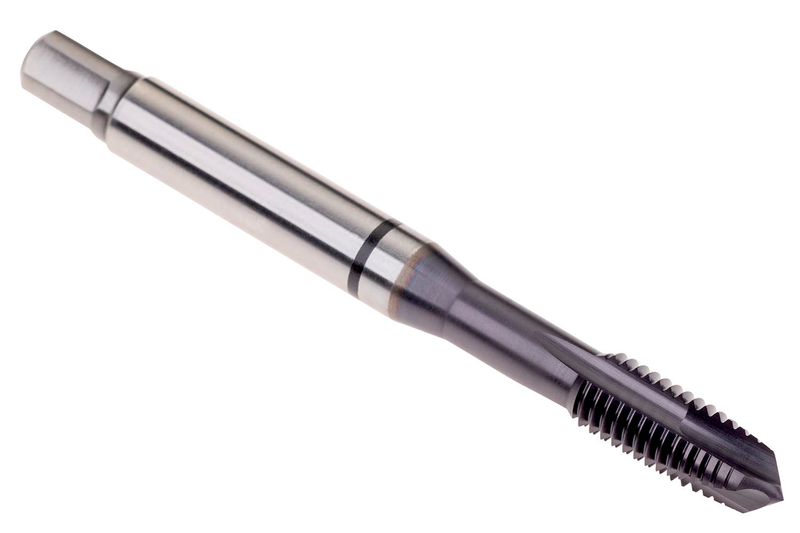

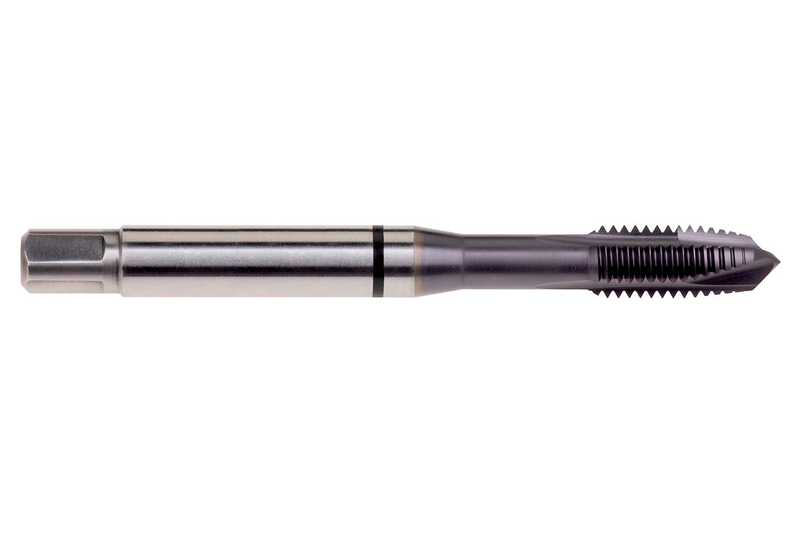

UGC DOR7798662
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.83 CAD - $68.83 CAD
$68.83 CAD
$68.83 CAD - $68.83 CAD
$68.83 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E334M4
GradeTiAlN/Top
Product Number7798662
Product FamilyE334
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.6693"
Usable Length — mm (LU)17.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
Direction of ToolNeutre
StandardNorme de travail
Reference Numbers
EDP Number7798662
EAN7320760884423
File Type Download
E334M4 — Line Drawing PDF Download
