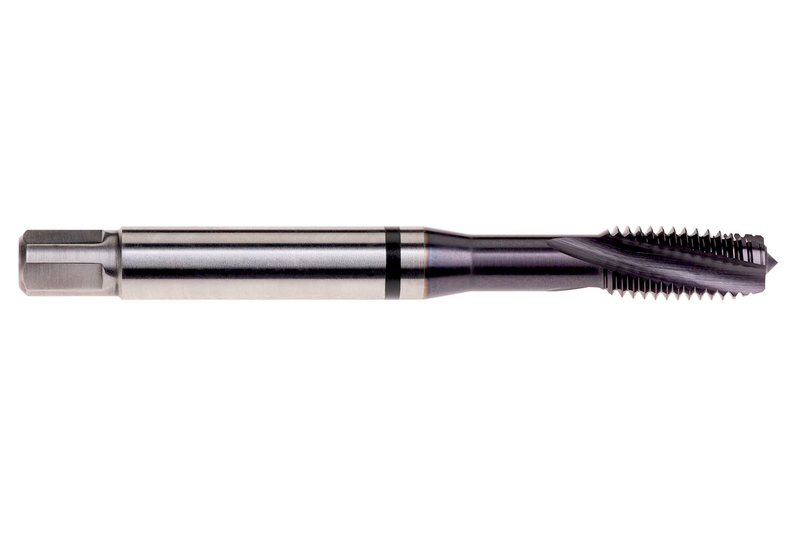

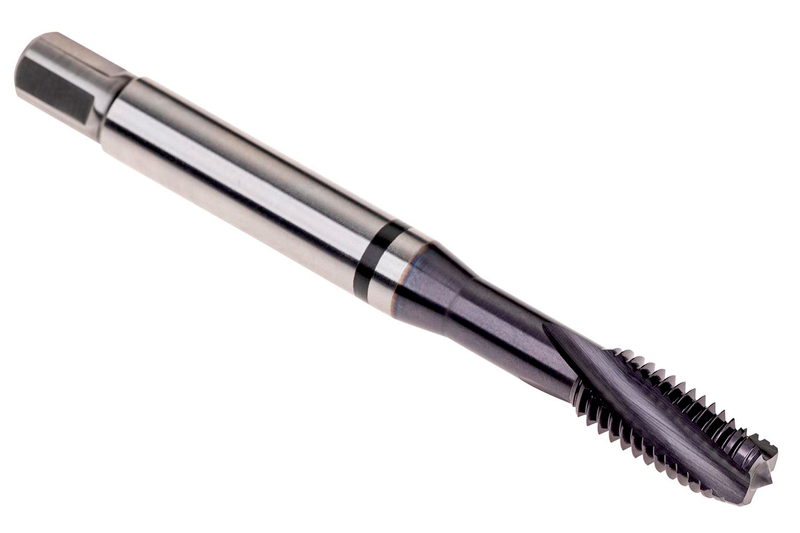

E335M4
E335M4
E335M4

E335M4

UGC DOR7798669
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$83.96 CAD - $83.96 CAD
$83.96 CAD
$83.96 CAD - $83.96 CAD
$83.96 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E335M4
GradeTiAlN/Sommet
Product Number7798669
Product FamilyE335

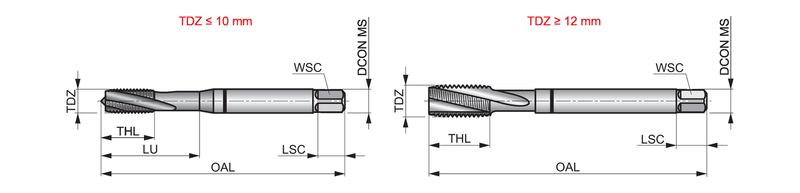

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.5118"
Usable Length — mm (LU)13.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
Direction of ToolNeutre
StandardNorme de travail
Reference Numbers
EDP Number7798669
EAN7320760884492
File Type Download
E335M4 — Line Drawing PDF Download
