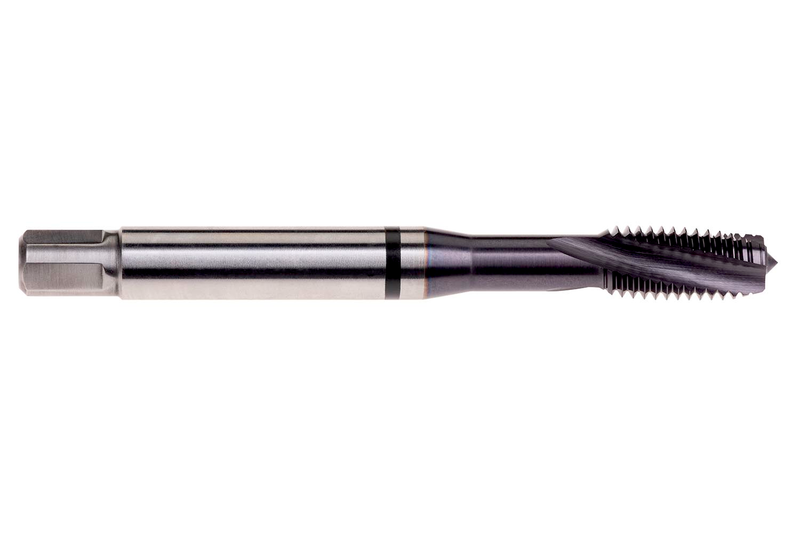

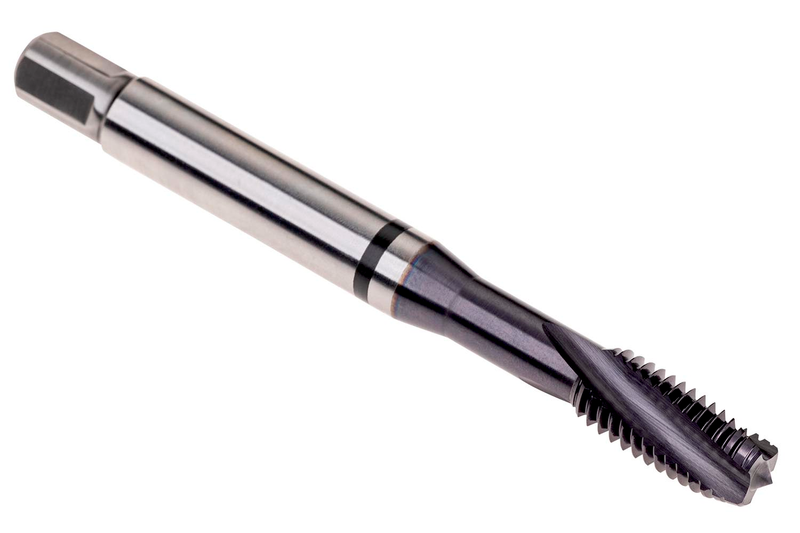

E335M12
E335M12
E335M12

E335M12

UGC DOR7798674
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$160.60 CAD - $160.60 CAD
$160.60 CAD
$160.60 CAD - $160.60 CAD
$160.60 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E335M12
GradeTiAlN/Top
Product Number7798674
Product FamilyE335

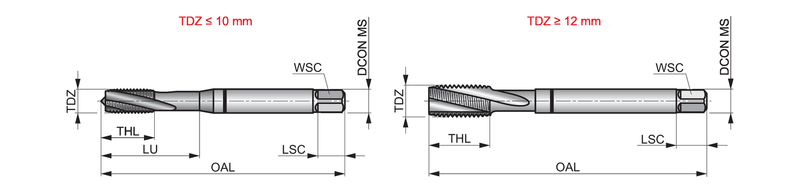

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
Direction of ToolNeutre
StandardNorme de travail
Reference Numbers
EDP Number7798674
EAN7320760884546
File Type Download
E335M12 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
