40A04R-SMOSN11-C
40A04R-SMOSN11-C
40A04R-SMOSN11-C

40A04R-SMOSN11-C

UGC DOR7799318
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$649.00 CAD - $649.00 CAD
$649.00 CAD
$649.00 CAD - $649.00 CAD
$649.00 CAD

Vendu en lots de : 1

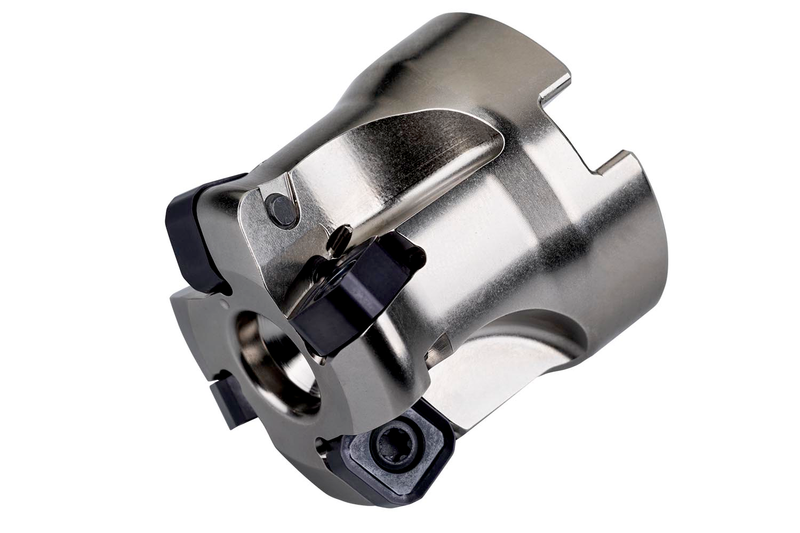

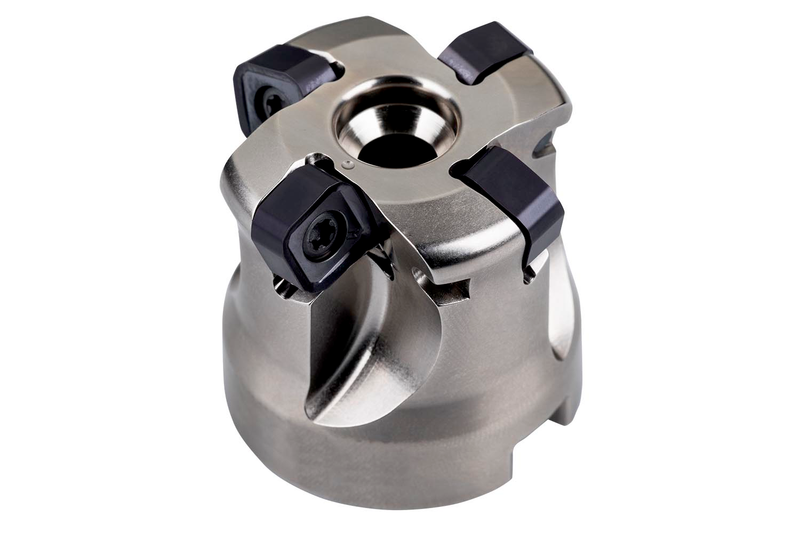

Fraise à avance rapide à double géométrie négative qui utilise 4 plaquettes SNGX 1104... double face, diamètre de coupe de 40 mm avec un angle d'attaque de 18° et un alésage de connexion de 16 mm selon DIN 8030-C, une longueur de dépassement de 40 mm, un arrosage par l'intérieur et un pas différentiel pour le surfaçage, la copie, l'usinage en rampe, l'usinage hélicoïdal, le plongement et le plongement progressif avec une profondeur de coupe maximale de 1,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A04R-SMOSN11-C
Product Number7799318
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

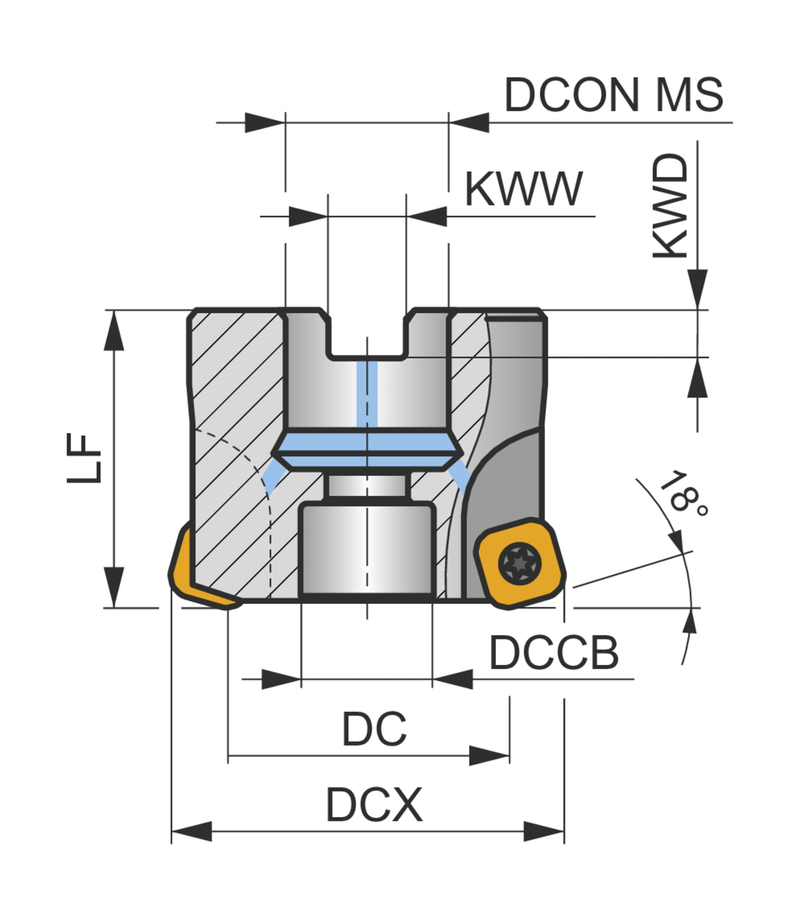

Dimensions
Cutting Diameter — in (DC)1.031"
Cutting Diameter — mm (DC)26.2 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSSN11
ShankFraise-disque DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7799318
EAN3603603672338
File Type Download
40A04R-SMOSN11-C — 3D Model STP Download
40A04R-SMOSN11-C — 2D Model DXF Download
40A04R-SMOSN11-C — Line Drawing PDF Download
