42A04R-SMOSN11-C
42A04R-SMOSN11-C
42A04R-SMOSN11-C

42A04R-SMOSN11-C

UGC DOR7799319
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$649.00 CAD - $649.00 CAD
$649.00 CAD
$649.00 CAD - $649.00 CAD
$649.00 CAD

Vendu en lots de : 1

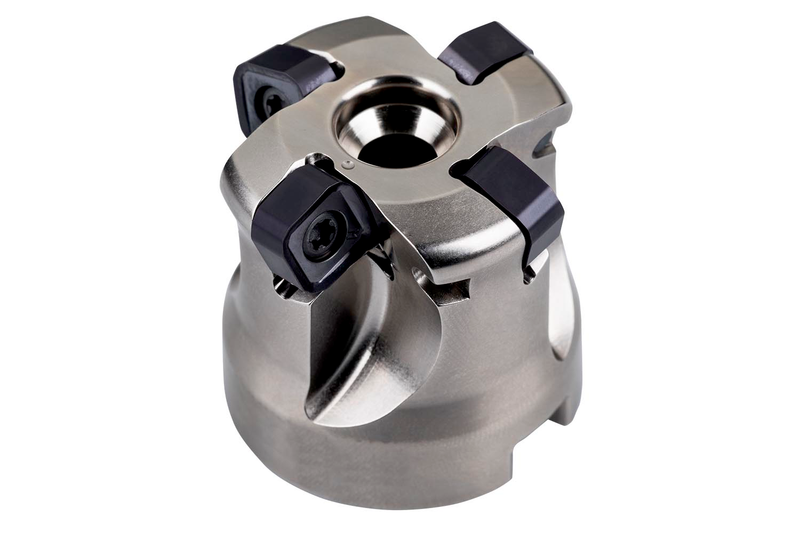

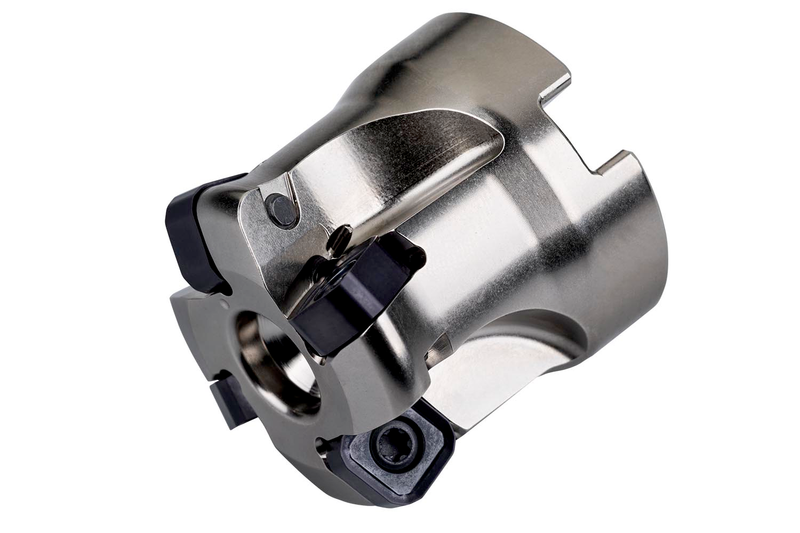

Fraise à avance rapide à géométrie double négative utilisant 4 plaquettes double face SNGX 1104..., diamètre de coupe 42 mm avec angle d'attaque de 18° et alésage de raccordement de 16 mm selon DIN 8030-C, longueur de saillie de 40 mm, arrosage central et pas différentiel pour le surfaçage, le copiage, l'usinage en rampe, l'usinage hélicoïdal, le plongement et le plongement progressif avec une profondeur de coupe maximale de 1,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)42A04R-SMOSN11-C
Product Number7799319
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

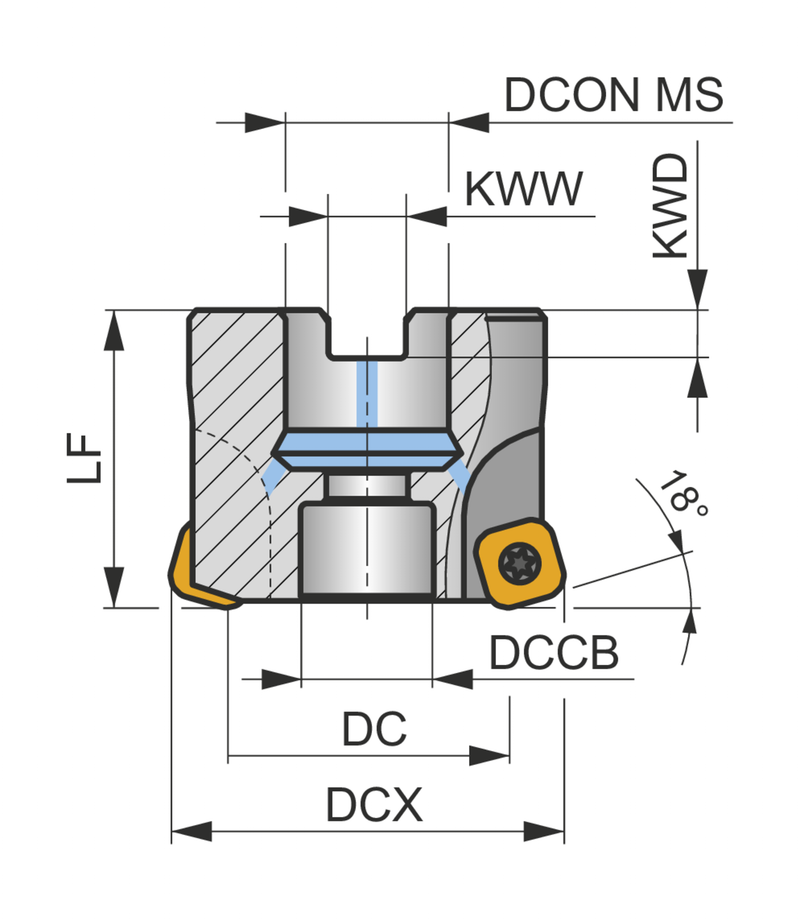

Dimensions
Cutting Diameter — in (DC)1.11"
Cutting Diameter — mm (DC)28.2 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSSN11
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7799319
EAN3603603672345
File Type Download
42A04R-SMOSN11-C — 3D Model STP Download
42A04R-SMOSN11-C — 2D Model DXF Download
42A04R-SMOSN11-C — Line Drawing PDF Download
