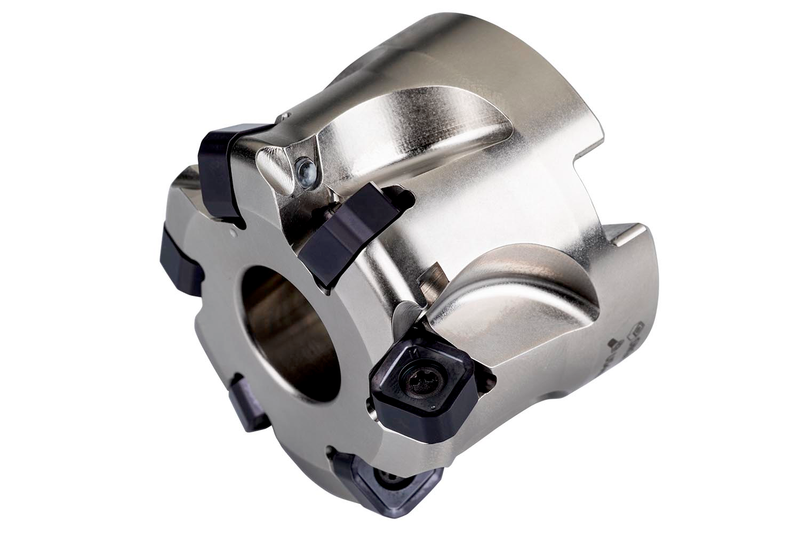

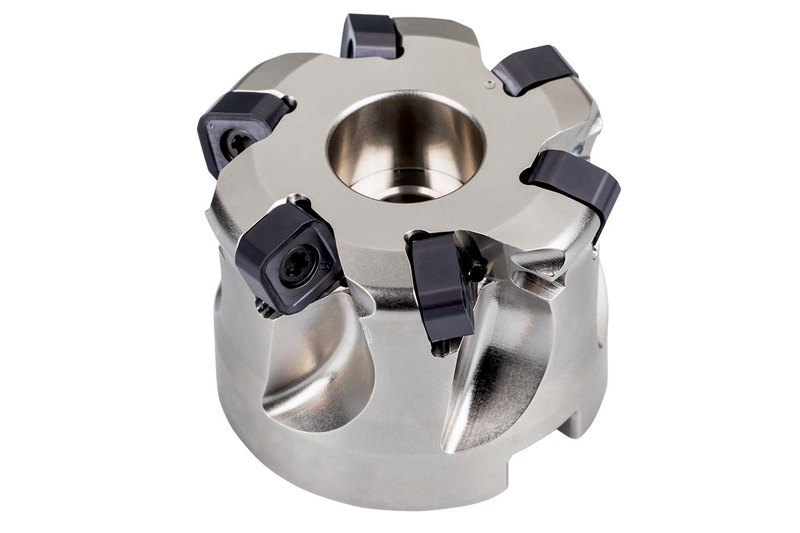

Fraise grande avance à géométrie double-négative utilisant 6 plaquettes double-face SNGX 1104.., diamètre de coupe de 52 mm avec un angle d'attaque de 18° et alésage de connexion de 22 mm selon DIN 8030-C, longueur de dépassement de 40 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage hélicoïdal, le fraisage par copiage, l'usinage en ramping et l'usinage par plongées successives avec une profondeur de coupe maximale de 1,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)52A06R-SMOSN11-C
Product Number7799343
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

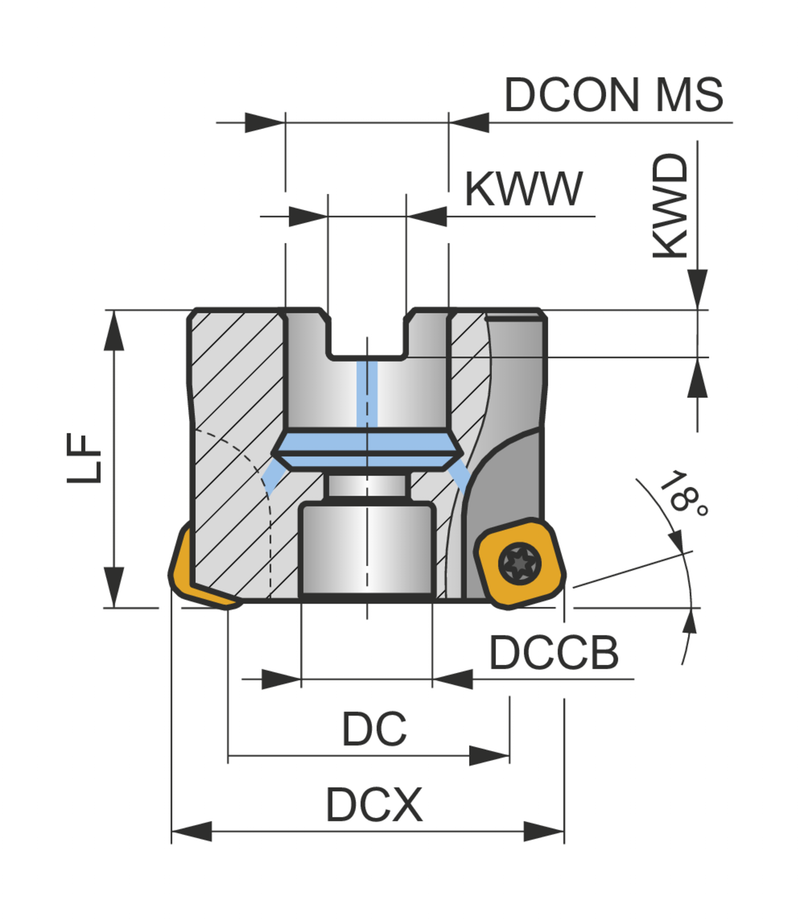

Dimensions
Cutting Diameter — in (DC)1.5"
Cutting Diameter — mm (DC)38.1 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSN11
ShankFraise cloche DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7799343
EAN3603603672383
File Type Download
52A06R-SMOSN11-C — 3D Model STP Download
52A06R-SMOSN11-C — 2D Model DXF Download
52A06R-SMOSN11-C — Line Drawing PDF Download
