63A06R-SMOSN11-C
63A06R-SMOSN11-C
63A06R-SMOSN11-C

63A06R-SMOSN11-C

UGC DOR7799344
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$967.00 CAD - $967.00 CAD
$967.00 CAD
$967.00 CAD - $967.00 CAD
$967.00 CAD

Vendu en lots de : 1

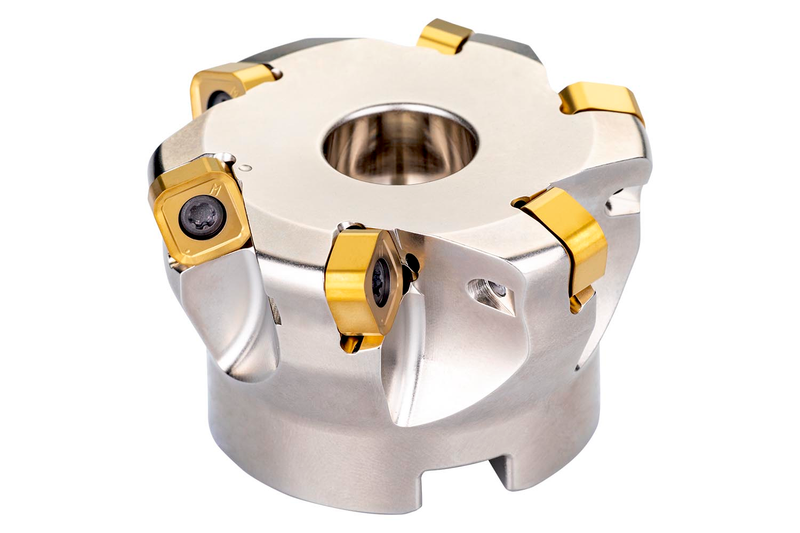

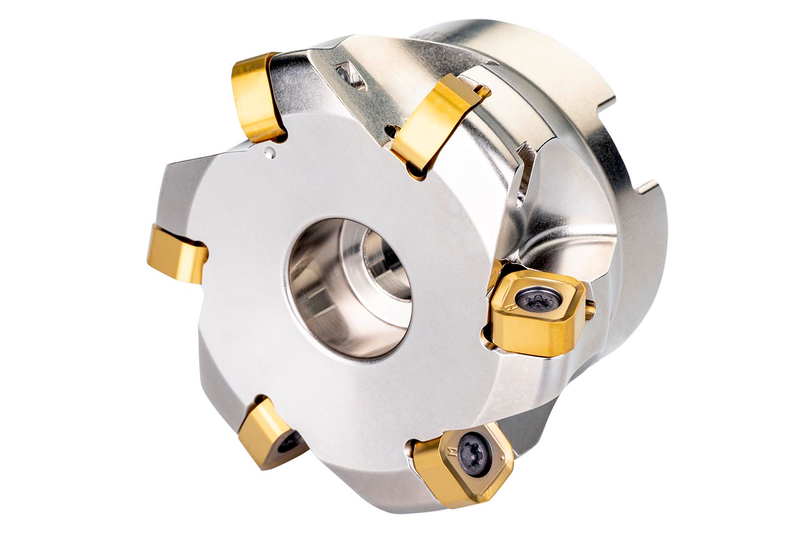

Fraise à avance rapide avec une double géométrie négative qui utilise 6 plaquettes double face SNGX 1104.., diamètre de coupe 63mm avec un angle d'attaque de 18° et un alésage de connexion de 22mm selon DIN 8030-C, longueur de saillie 40mm, arrosage centralisé et pas différentiel pour le surfaçage, le copiage, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1.7mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A06R-SMOSN11-C
Product Number7799344
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

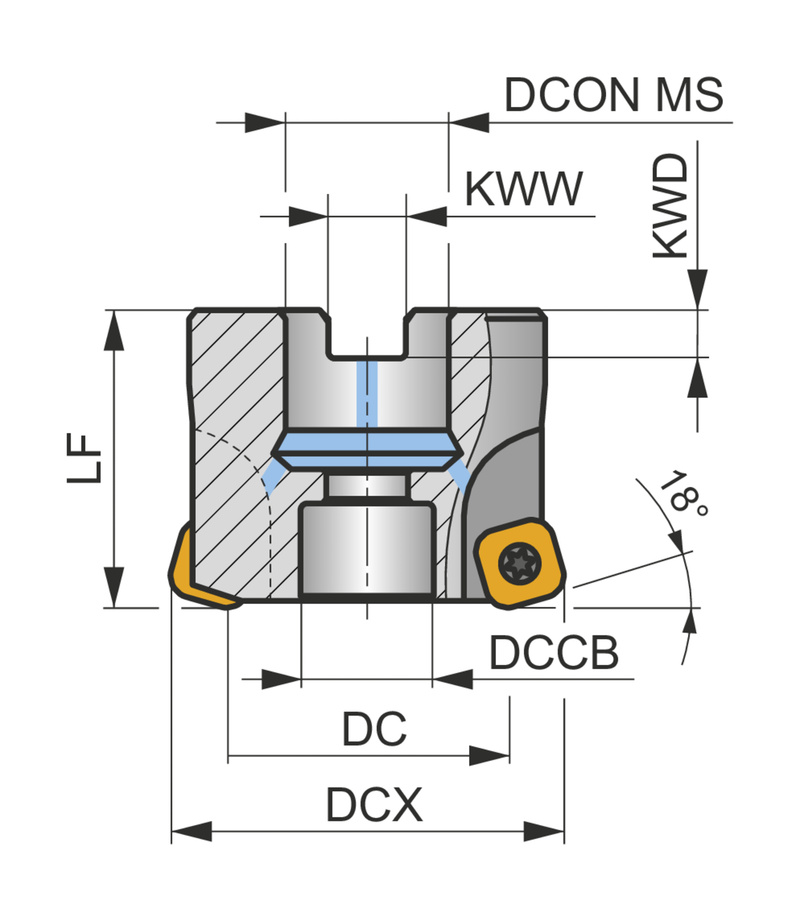

Dimensions
Cutting Diameter — in (DC)1.933"
Cutting Diameter — mm (DC)49.1 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSN11
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7799344
EAN3603603672390
File Type Download
63A06R-SMOSN11-C — 3D Model STP Download
63A06R-SMOSN11-C — 2D Model DXF Download
63A06R-SMOSN11-C — Line Drawing PDF Download
