66A06R-SMOSN11-C
66A06R-SMOSN11-C
66A06R-SMOSN11-C

66A06R-SMOSN11-C

UGC DOR7799346
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$967.00 CAD - $967.00 CAD
$967.00 CAD
$967.00 CAD - $967.00 CAD
$967.00 CAD

Vendu en lots de : 1

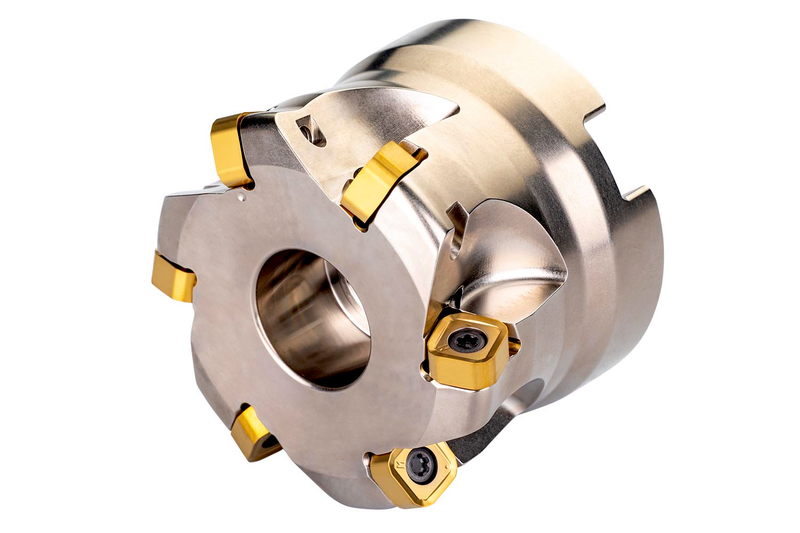

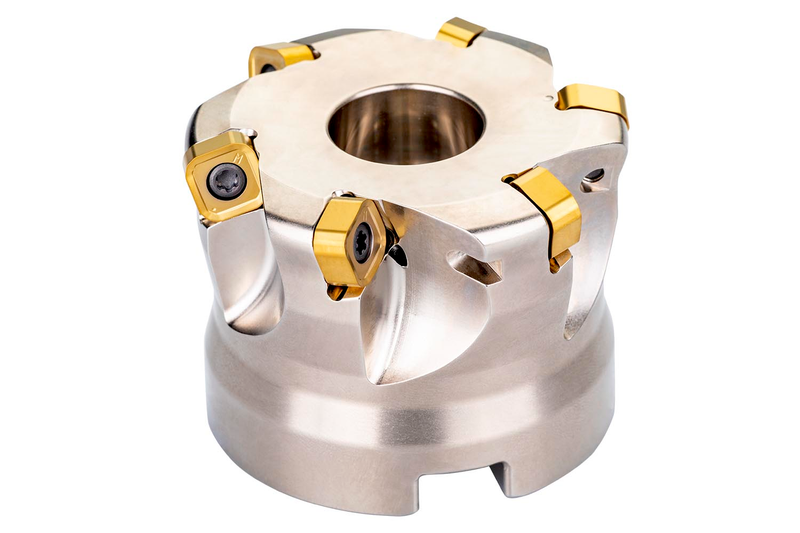

Fraise à avance rapide à double géométrie négative utilisant 6 plaquettes double face SNGX 1104.., diamètre de coupe 66 mm avec un angle d'attaque de 18° et un alésage de connexion de 27 mm selon DIN 8030-C, une longueur de dépassement de 50 mm, arrosage central et pas différentiel pour le surfaçage, la copie, l'usinage en rampe, l'usinage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)66A06R-SMOSN11-C
Product Number7799346
Product FamilySSN11

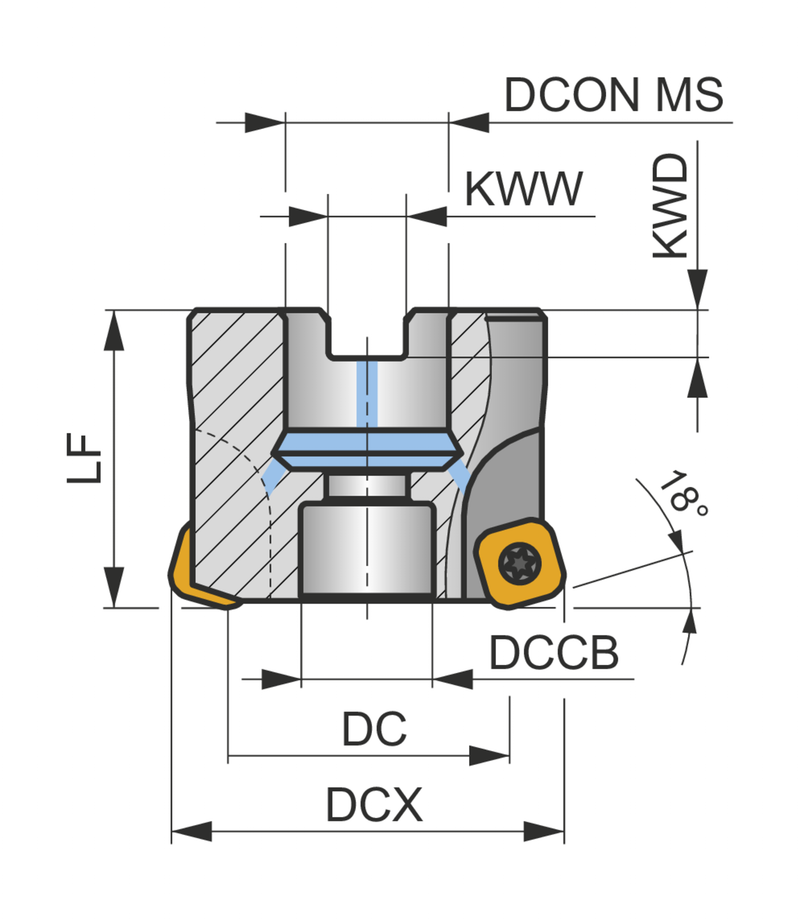

Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm
Dimensions
Cutting Diameter — in (DC)2.051"
Cutting Diameter — mm (DC)52.1 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSN11
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7799346
EAN3603603672413
File Type Download
66A06R-SMOSN11-C — 3D Model STP Download
66A06R-SMOSN11-C — 2D Model DXF Download
66A06R-SMOSN11-C — Line Drawing PDF Download
