100A08R-SMOSN11-C
100A08R-SMOSN11-C
100A08R-SMOSN11-C

100A08R-SMOSN11-C

UGC DOR7799350
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,203.00 CAD - $1,203.00 CAD
$1,203.00 CAD
$1,203.00 CAD - $1,203.00 CAD
$1,203.00 CAD

Vendu en lots de : 1

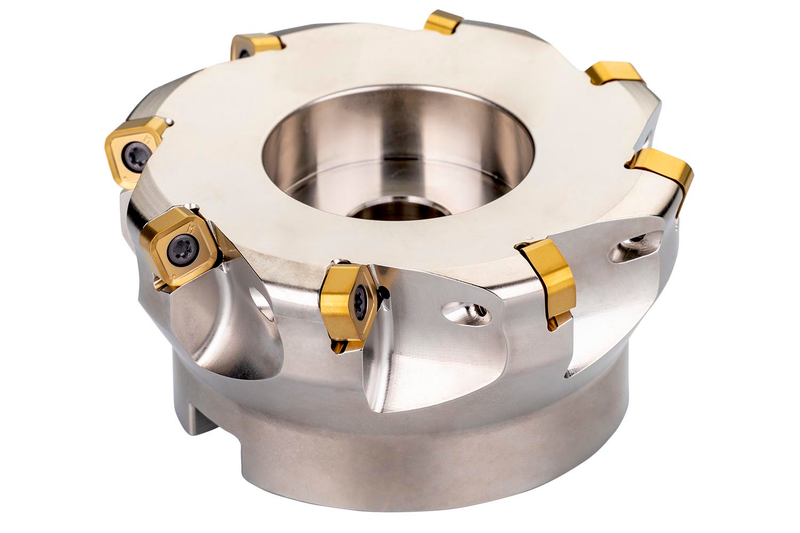

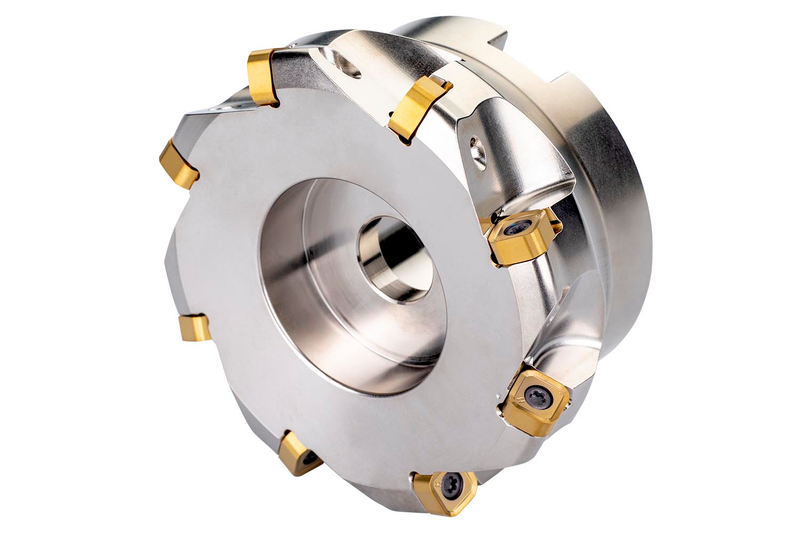

Fraise à avance élevée avec géométrie double négative qui utilise 8 plaquettes double-face SNGX 1104.., diamètre de coupe 100mm avec angle d'attaque de 18° et alésage de connexion 32mm selon DIN 8030-C, longueur de saillie 50mm, arrosage centralisé et pas différentiel pour le surfaçage, le fraisage de copie, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,7mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A08R-SMOSN11-C
Product Number7799350
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

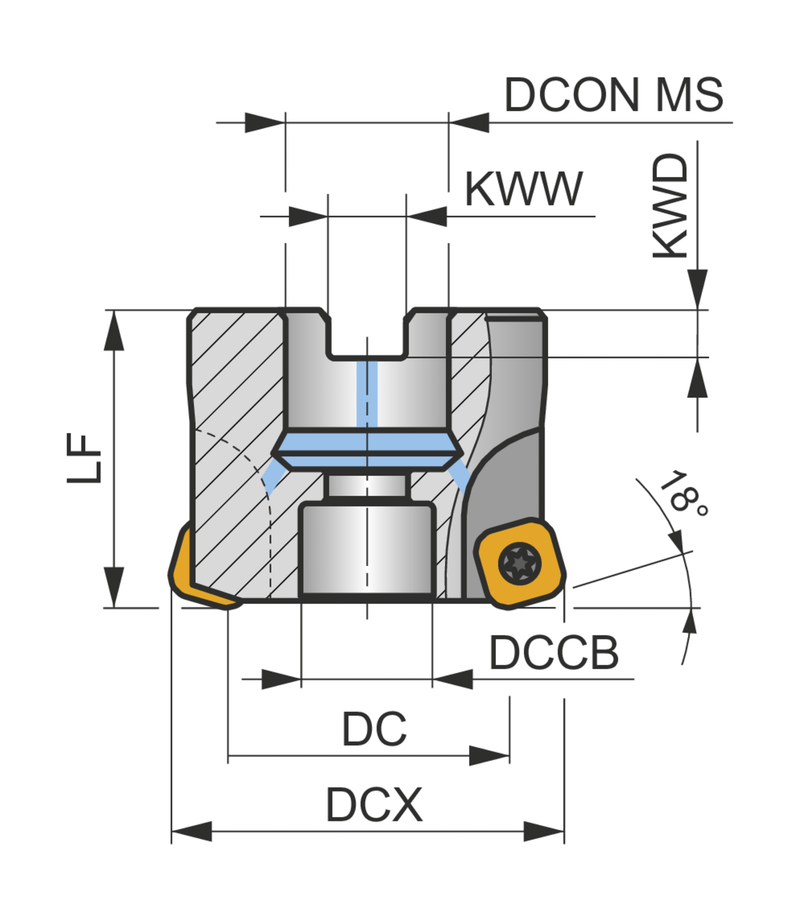

Dimensions
Cutting Diameter — in (DC)3.39"
Cutting Diameter — mm (DC)86.1 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSSN11
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7799350
EAN3603603672451
File Type Download
100A08R-SMOSN11-C — 3D Model STP Download
100A08R-SMOSN11-C — 2D Model DXF Download
100A08R-SMOSN11-C — Line Drawing PDF Download
