115A08R-SMOSN11-C
115A08R-SMOSN11-C
115A08R-SMOSN11-C

115A08R-SMOSN11-C

UGC DOR7799351
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,299.00 CAD - $1,299.00 CAD
$1,299.00 CAD
$1,299.00 CAD - $1,299.00 CAD
$1,299.00 CAD

Vendu en lots de : 1

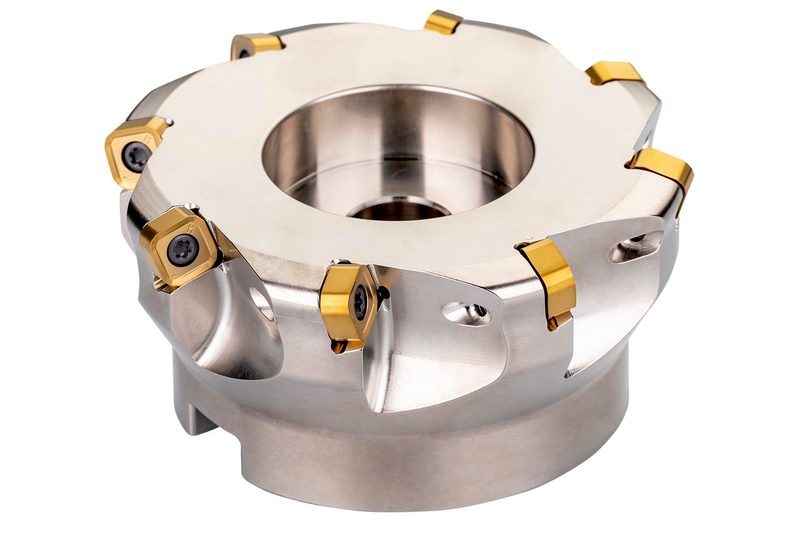

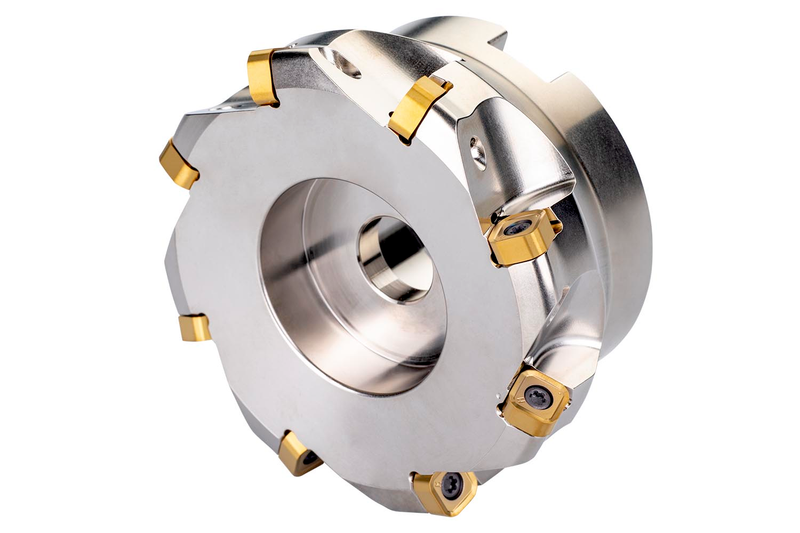

Fraise à avance élevée avec géométrie doublement négative utilisant 8 plaquettes double face SNGX 1104.., diamètre de coupe 115 mm avec un angle d'attaque de 18° et un alésage de connexion de 32 mm selon DIN 8030-C, longueur de saillie de 50 mm, arrosage central et pas différentiel pour le surfaçage, le copiage, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)115A08R-SMOSN11-C
Product Number7799351
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

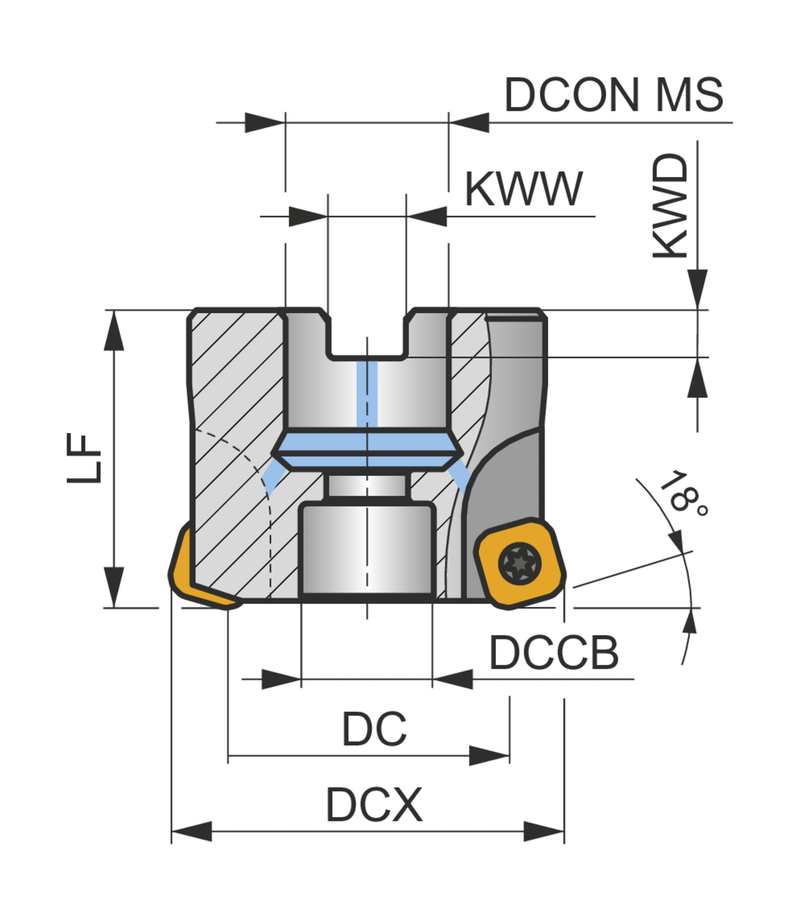

Dimensions
Cutting Diameter — in (DC)3.98"
Cutting Diameter — mm (DC)101.1 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSSN11
ShankFraise à surfacer DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7799351
EAN3603603672468
File Type Download
115A08R-SMOSN11-C — 3D Model STP Download
115A08R-SMOSN11-C — 2D Model DXF Download
115A08R-SMOSN11-C — Line Drawing PDF Download
