32E3R070A32-SSN11-C
32E3R070A32-SSN11-C
32E3R070A32-SSN11-C

32E3R070A32-SSN11-C

UGC DOR7799390
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$609.00 CAD - $609.00 CAD
$609.00 CAD
$609.00 CAD - $609.00 CAD
$609.00 CAD

Vendu en lots de : 1

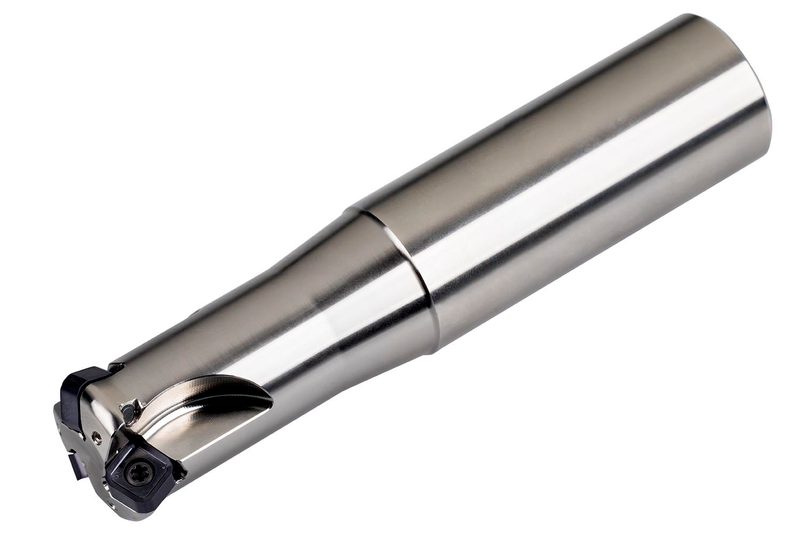

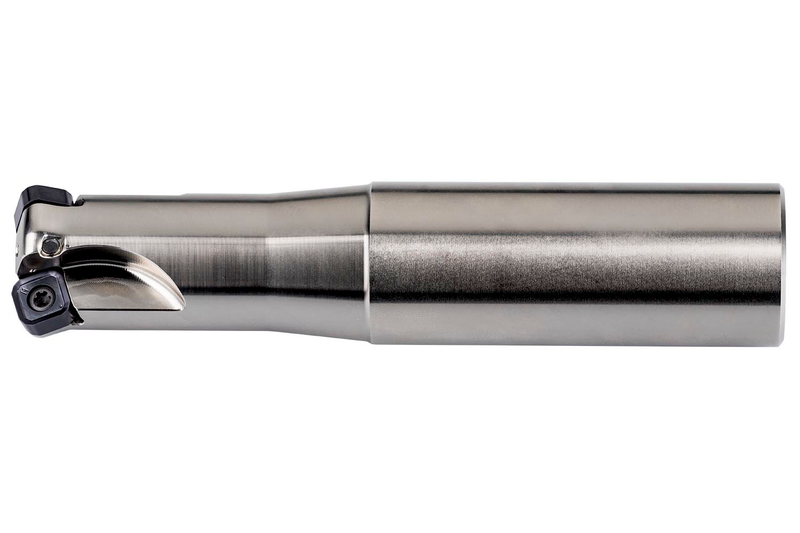

Fraise à avance rapide avec géométrie double négative qui utilise 3 plaquettes double-face SNGX 1104, diamètre de coupe 32mm avec angle d'attaque 18° et queue cylindrique 32mm selon DIN 1835A, longueur fonctionnelle 70mm et longueur totale 150mm, arrosage central pour le surfaçage, le fraisage de copiage, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,7mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E3R070A32-SSN11-C
Product Number7799390
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

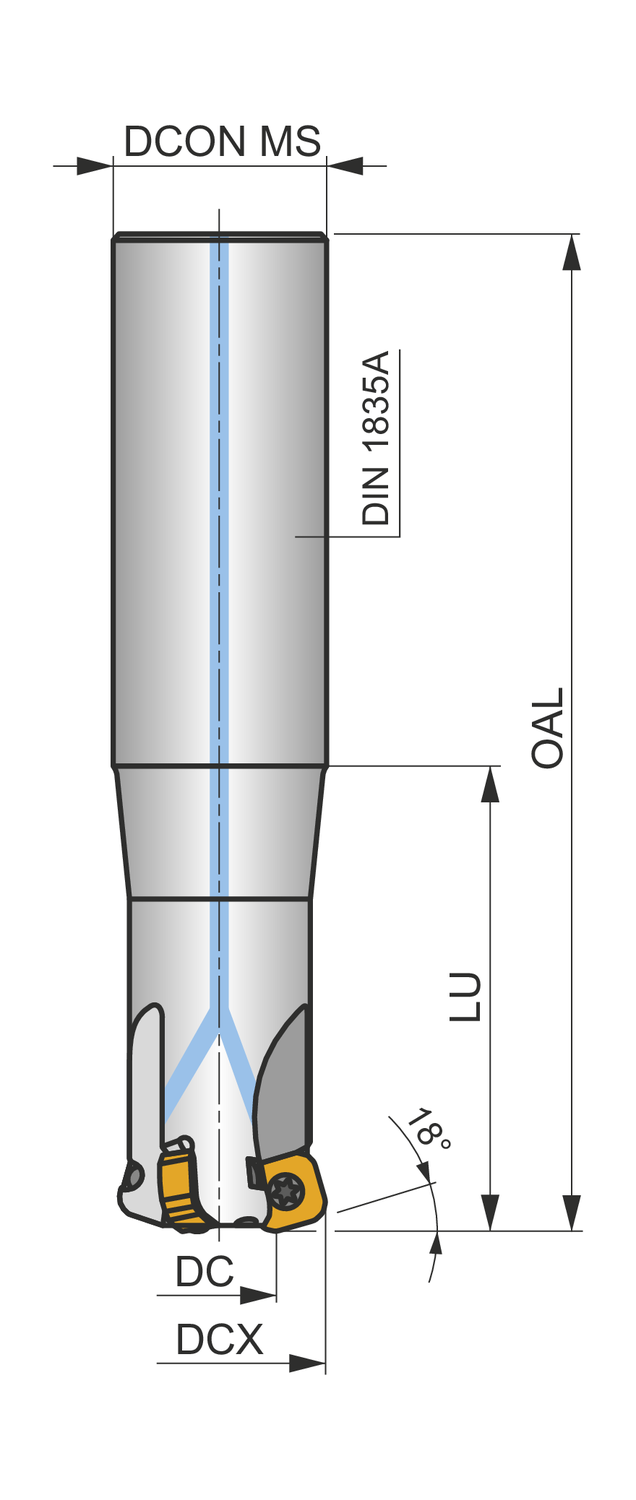

Dimensions
Cutting Diameter — in (DC)0.72"
Cutting Diameter — mm (DC)18.3 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)70.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSSN11
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7799390
EAN3603603672482
File Type Download
32E3R070A32-SSN11-C — 3D Model STP Download
32E3R070A32-SSN11-C — 2D Model DXF Download
32E3R070A32-SSN11-C — Line Drawing PDF Download
