35E3R050A32-SSN11-C
35E3R050A32-SSN11-C
35E3R050A32-SSN11-C

35E3R050A32-SSN11-C

UGC DOR7799393
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$631.00 CAD - $631.00 CAD
$631.00 CAD
$631.00 CAD - $631.00 CAD
$631.00 CAD

Vendu en lots de : 1

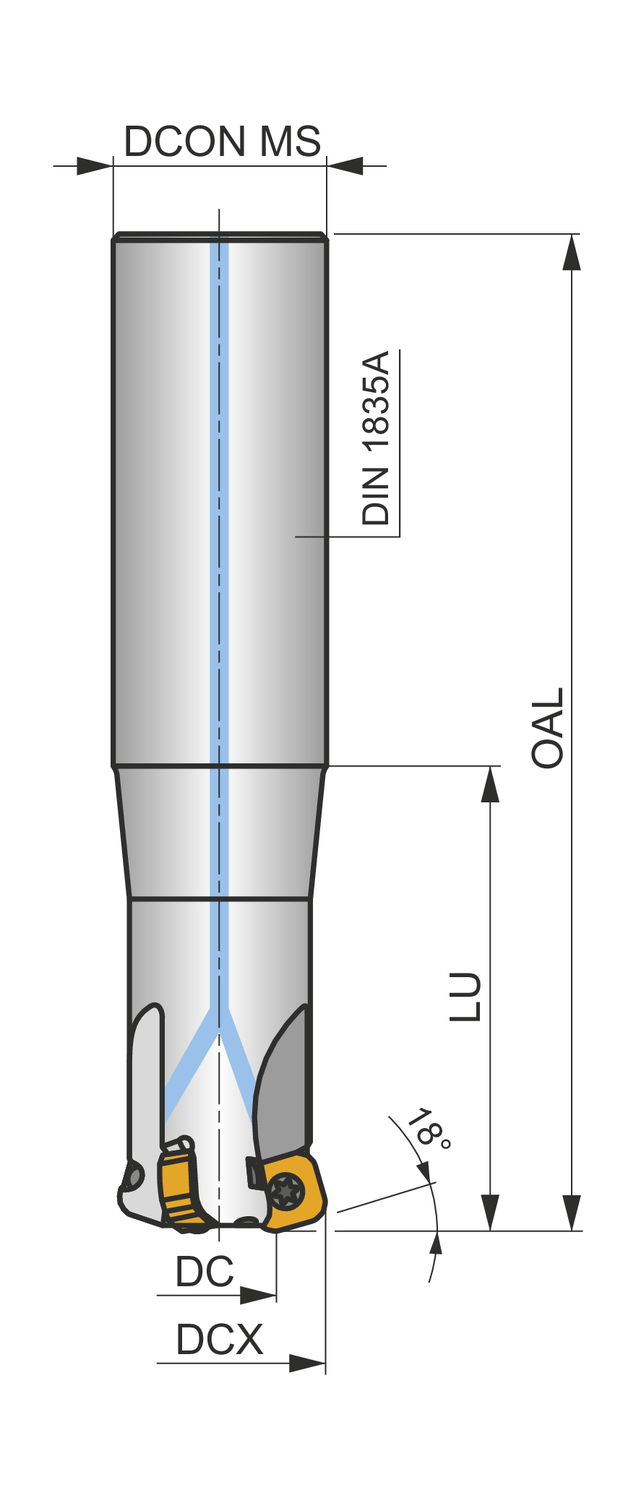

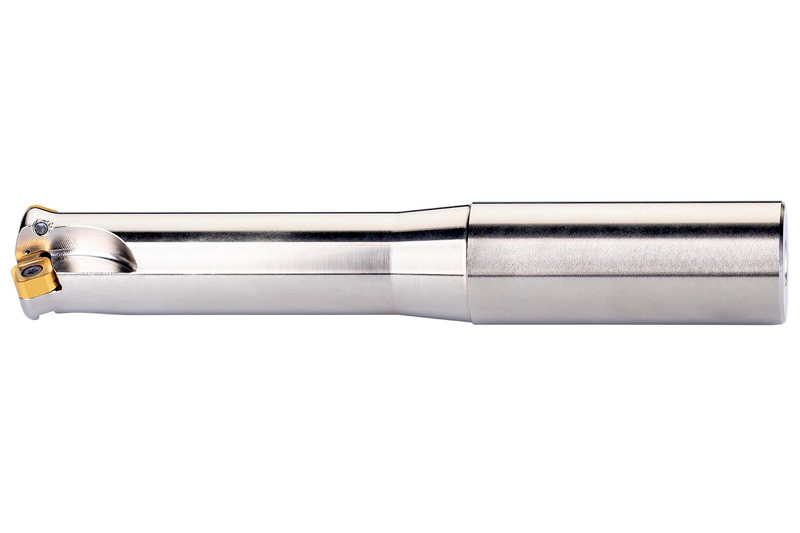

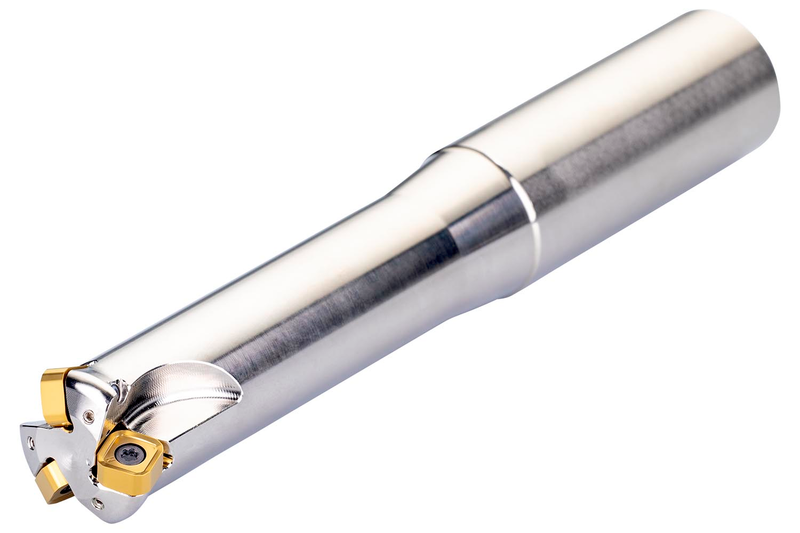

Fraise à avance rapide à double géométrie négative qui utilise 3 plaquettes double face SNGX 1104.., diamètre de coupe 35mm avec un angle d'attaque de 18° et une queue cylindrique de 32mm selon DIN 1835A, une longueur fonctionnelle de 50mm et une longueur totale de 200mm, arrosage par l'intérieur pour le surfaçage, le fraisage en copiage, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1.7mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35E3R050A32-SSN11-C
Product Number7799393
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm
Dimensions
Cutting Diameter — in (DC)0.835"
Cutting Diameter — mm (DC)21.2 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSSN11
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7799393
EAN3603603672512
File Type Download
35E3R050A32-SSN11-C — 3D Model STP Download
35E3R050A32-SSN11-C — 2D Model DXF Download
35E3R050A32-SSN11-C — Line Drawing PDF Download
