40E4R043M16-SSN11-C
40E4R043M16-SSN11-C
40E4R043M16-SSN11-C

40E4R043M16-SSN11-C

UGC DOR7799396
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$631.00 CAD - $631.00 CAD
$631.00 CAD
$631.00 CAD - $631.00 CAD
$631.00 CAD

Vendu en lots de : 1

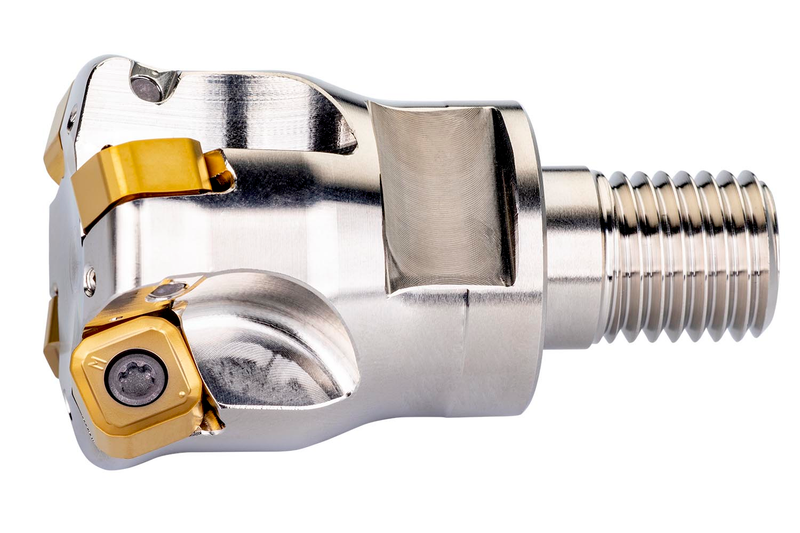

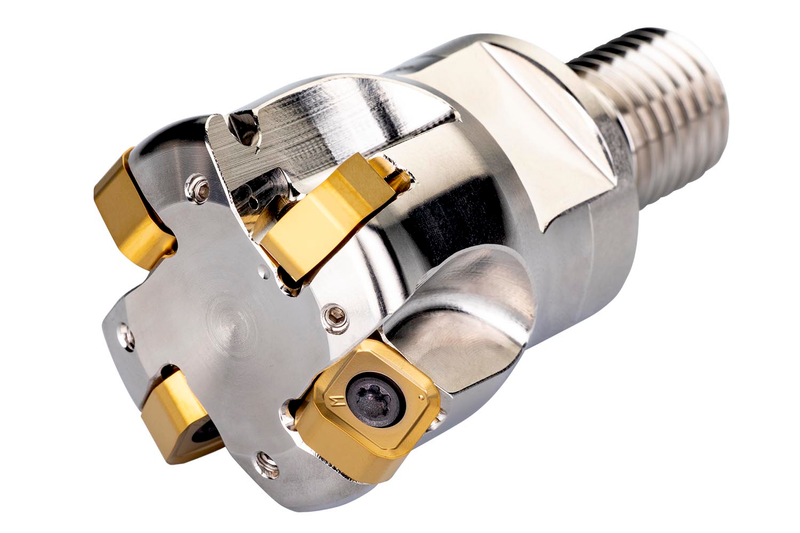

Fraise à avance élevée avec géométrie double négative utilisant 4 plaquettes double-face SNGX 1104.., diamètre de coupe 40 mm avec angle d'attaque de 18° et queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement de 43 mm, arrosage central et pas différentiel pour le surfaçage, la copie, l'usinage en ramping, l'usinage hélicoïdal, l'usinage en plongée et l'usinage en plongée progressive avec une profondeur de coupe maximale de 1,7 mm

For more information about this product, click here

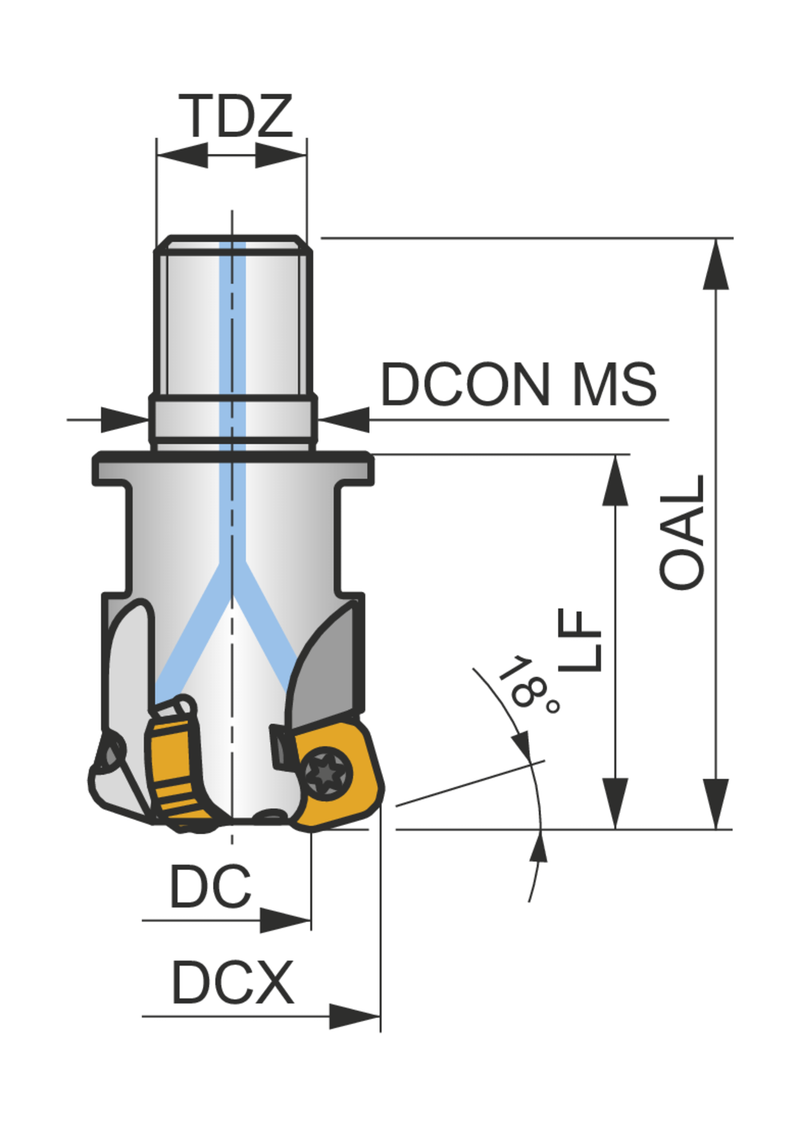

Identification
Ordering Code (ANSI/ISO)40E4R043M16-SSN11-C
Product Number7799396
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm
Dimensions
Cutting Diameter — in (DC)1.031"
Cutting Diameter — mm (DC)26.2 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSSN11
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7799396
EAN3603603672543
File Type Download
40E4R043M16-SSN11-C — 3D Model STP Download
40E4R043M16-SSN11-C — 2D Model DXF Download
40E4R043M16-SSN11-C — Line Drawing PDF Download
